Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	BFU520XR
Standard Package	3000
Manufacturer	NXP USA Inc.
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	10.5GHz
Noise Figure (dB Typ @ f)	0.65dB @ 900MHz
Gain	20dB
Power - Max	450mW
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 5mA, 8V
Current - Collector (Ic) (Max)	30mA
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount

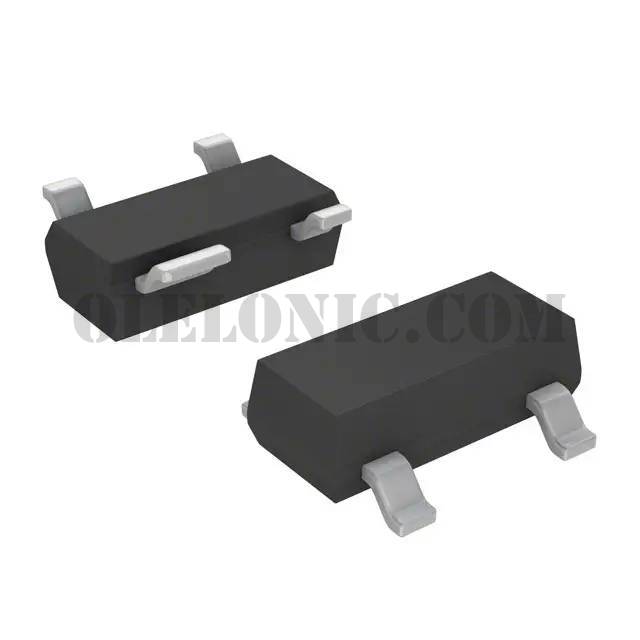

Package / Case	SOT-143R
Supplier Device Package	SOT-143R
Base Part Number	BFU520
