Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	BFU520X
Standard Package	1
Manufacturer	NXP USA Inc.
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	10.5GHz
Noise Figure (dB Typ @ f)	0.7dB @ 900MHz
Gain	20dB
Power - Max	450mW
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 5mA, 8V
Current - Collector (Ic) (Max)	30mA
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount

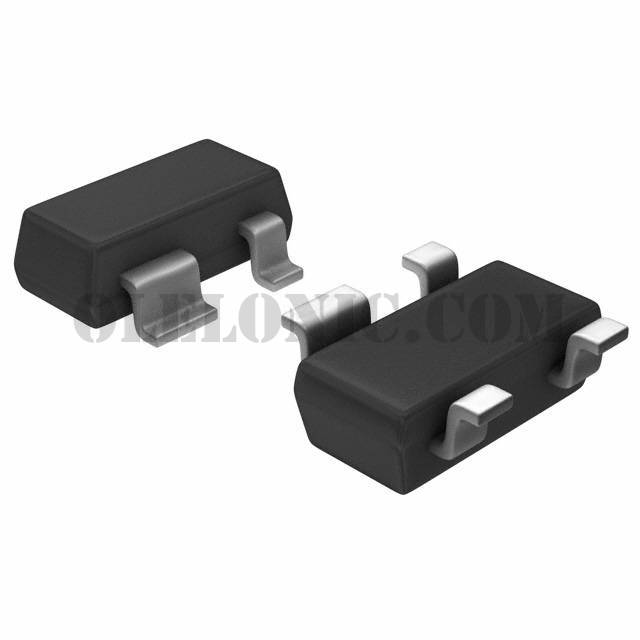

Package / Case	TO-253-4, TO-253AA
Supplier Device Package	SOT-143B
Base Part Number	BFU520
