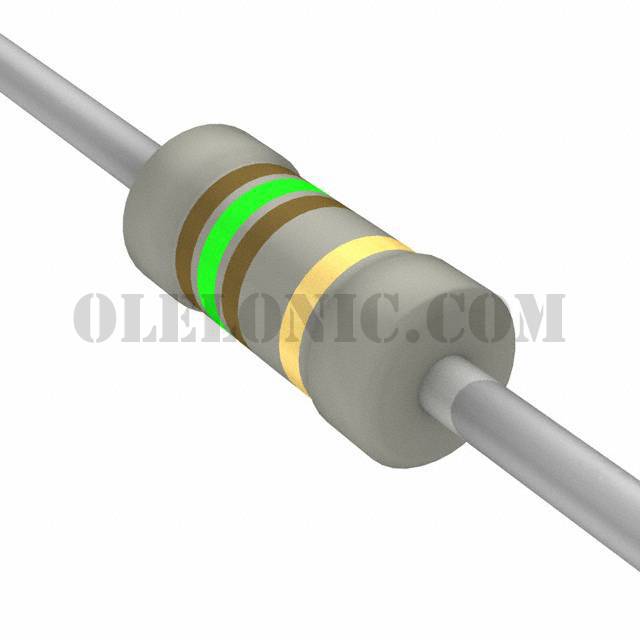

B78108S1154J000


B78108S1154J000

Part NumberB78108S1154J000

Manufacturer

Description

Datasheet

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B78108S1154J000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerEPCOS (TDK)
SeriesBC
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance150µH
Tolerance±5%
Current Rating (Amps)280mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)2.8Ohm Max
Q @ Freq70 @ 796kHz
Frequency - Self Resonant4.2MHz
Ratings-
Operating Temperature-
Inductance Frequency - Test796kHz
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device PackageAxial
Size / Dimension0.157" Dia x 0.362" L (4.00mm x 9.20mm)
Height - Seated (Max)-
