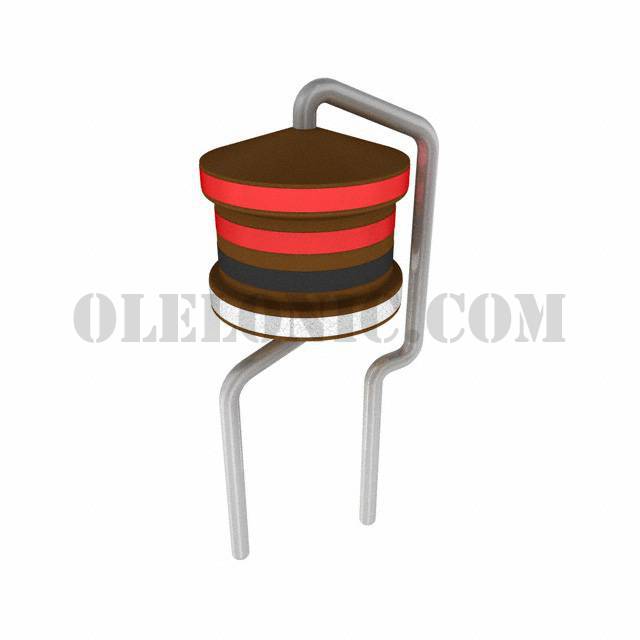

B78148E1223K000


B78148E1223K000

Part NumberB78148E1223K000

Manufacturer

Description

Datasheet

Package / CaseRadial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B78148E1223K000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package2000
ManufacturerEPCOS (TDK)
SeriesBC+
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance22µH
Tolerance±10%
Current Rating (Amps)1.3A
Current - Saturation1.25A
ShieldingUnshielded
DC Resistance (DCR)350mOhm Max
Q @ Freq40 @ 796kHz
Frequency - Self Resonant12MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseRadial
Supplier Device Package-
Size / Dimension0.157" Dia (4.00mm)
Height - Seated (Max)0.453" (11.50mm)
