Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B78108E, B78148E Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	B78108E
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	6.8µH
Tolerance	±10%
Current Rating (Amps)	2.45A
Current - Saturation	2.3A
Shielding	Unshielded
DC Resistance (DCR)	105mOhm Max
Q @ Freq	40 @ 7.96MHz
Frequency - Self Resonant	25MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Features	-
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.157" Dia x 0.374" L (4.00mm x 9.50mm)
Height - Seated (Max)	-

B78108E1471M000	EPCOS (TDK), 470nH Unshielded Wirewound Inductor 5A 27mOhm Max Axial, BC+	View
B78108S1334J000	EPCOS (TDK), 330µH Unshielded Wirewound Inductor 190mA 6.4Ohm Max Axial, BC	View
B78108E1153K009	EPCOS (TDK), 15µH Unshielded Wirewound Inductor 1.6A 230mOhm Max Axial, B78108E	View
B78108E1332K000	EPCOS (TDK), 3.3µH Unshielded Wirewound Inductor 3.05A 73mOhm Max Axial, BC+	View
B78148E1223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 1.3A 350mOhm Max Radial, BC+	View
B78148E1101M000	EPCOS (TDK), 100nH Unshielded Wirewound Inductor 7.3A 15mOhm Max Radial, BC+	View
B78148S1225J000	EPCOS (TDK), 2.2mH Unshielded Wirewound Inductor 80mA 34.7Ohm Max Radial, BC	View
B78108E1682K009	EPCOS (TDK), 6.8µH Unshielded Wirewound Inductor 2.45A 105mOhm Max Axial, B78108E	View
B78108S1393K000	EPCOS (TDK), 39µH Unshielded Wirewound Inductor 470mA 1.02Ohm Max Axial, BC	View
B78148E1104J000	EPCOS (TDK), 100µH Unshielded Wirewound Inductor 640mA 1.45Ohm Max Radial, BC+	View
B78108S1475J000	EPCOS (TDK), 4.7mH Unshielded Wirewound Inductor 55mA 78Ohm Max Axial, BC	View
B78148E1681M000	EPCOS (TDK), 680nH Unshielded Wirewound Inductor 4.6A 31mOhm Max Radial, BC+	View

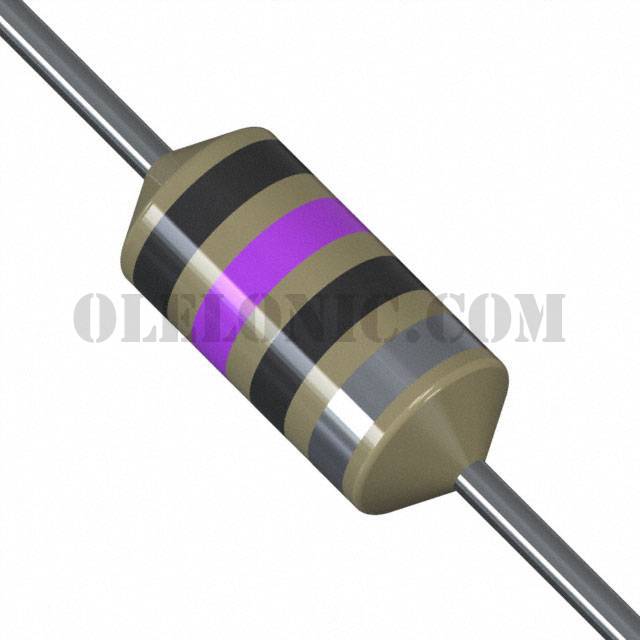

B78108E1682K009

Part NumberB78108E1682K009
