B78108E1471M009
B78108E1471M009

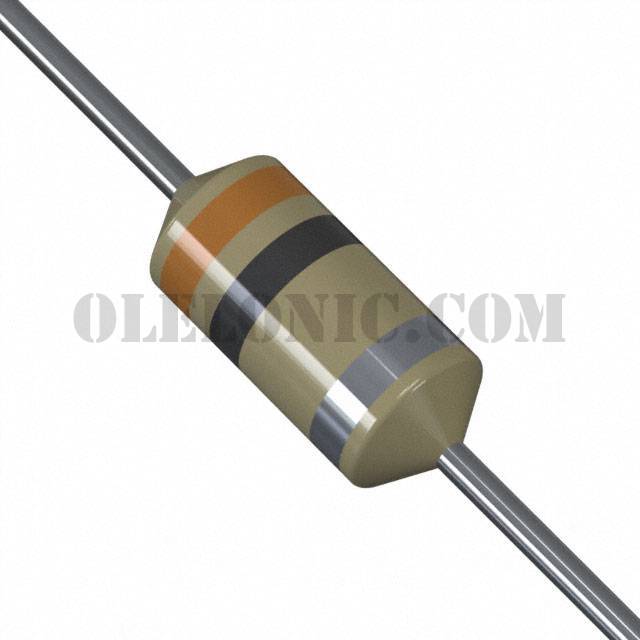

Part Number B78108E1471M009
Description FIXED IND 470NH 5A 27 MOHM TH
Package / Case Axial
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 470nH Unshielded Wirewound Inductor 5A 27mOhm Max Axial
To learn about the specification of B78108E1471M009, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B78108E1471M009 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B78108E1471M009.
We are offering B78108E1471M009 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B78108E1471M009 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet B78108E, B78148E Series
Standard Package 1
Manufacturer EPCOS (TDK)
Series B78108E
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 470nH
Tolerance ±20%
Current Rating (Amps) 5A
Current - Saturation 8.5A
Shielding Unshielded
DC Resistance (DCR) 27mOhm Max
Q @ Freq 60 @ 7.96MHz
Frequency - Self Resonant 400MHz
Ratings -
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 1MHz
Features -
Mounting Type Through Hole
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.157" Dia x 0.374" L (4.00mm x 9.50mm)
Height - Seated (Max) -
