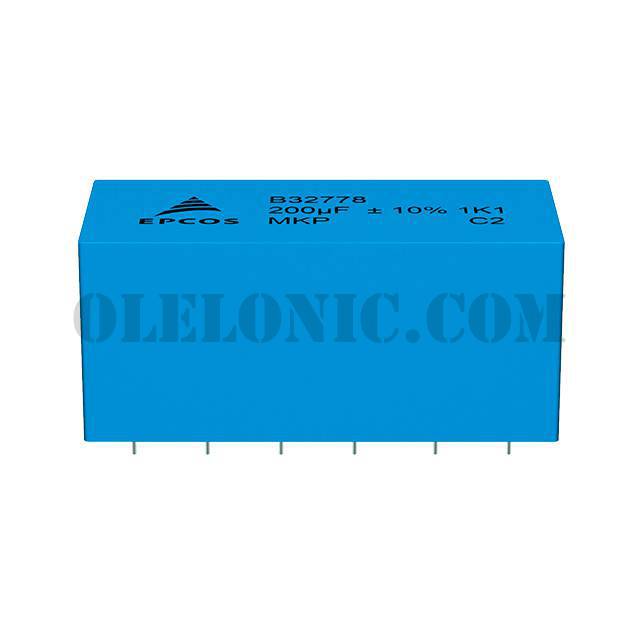

Categories	Capacitors / Film Capacitors
Datasheet	B32774,76,78 Series
Standard Package	10
Manufacturer	EPCOS (TDK)
Series	B32778
Packaging	Bulk
Part Status	Active
Capacitance	120µF
Tolerance	±10%
Voltage Rating - AC	-
Voltage Rating - DC	1300V (1.3kV)
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	1.7 mOhms
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	12-DIP
Size / Dimension	2.264" L x 5.118" W (57.50mm x 130.00mm)
Height - Seated (Max)	2.283" (58.00mm)
Termination	PC Pins
Lead Spacing	2.067" (52.50mm)
Applications	DC Link, DC Filtering
Ratings	-
Features	Long Life
