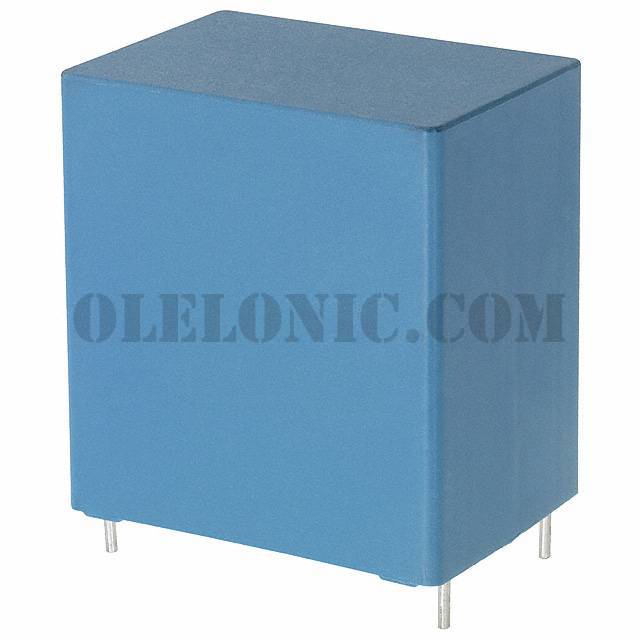

Categories	Capacitors / Film Capacitors
Datasheet	B32774,76,78 Series
Standard Package	100
Manufacturer	EPCOS (TDK)
Series	B32776
Packaging	Bulk
Part Status	Active
Capacitance	20µF
Tolerance	±10%
Voltage Rating - AC	-
Voltage Rating - DC	1100V (1.1kV)
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	3 mOhms
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max)	1.772" (45.00mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	DC Link, DC Filtering
Ratings	-
Features	Long Life
