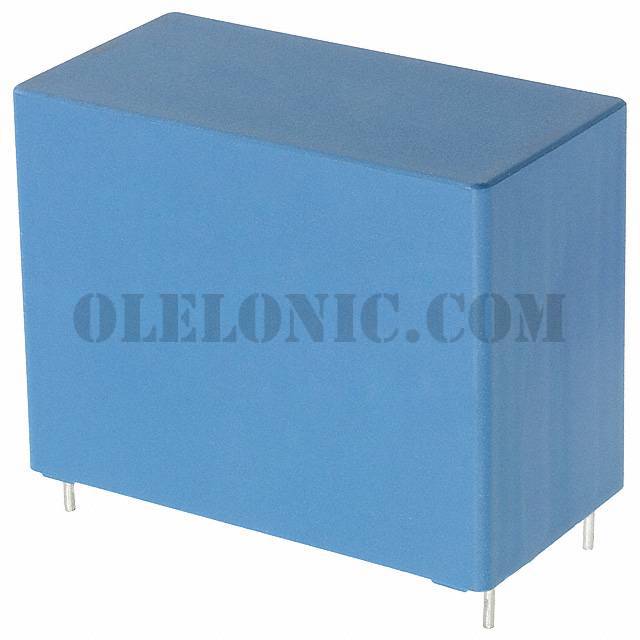

Categories	Capacitors / Film Capacitors
Datasheet	B32774,76,78 Series
Standard Package	70
Manufacturer	EPCOS (TDK)
Series	B32778
Packaging	Bulk
Part Status	Active
Capacitance	50µF
Tolerance	±10%
Voltage Rating - AC	-
Voltage Rating - DC	800V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	6.3 mOhms
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Height - Seated (Max)	-
Termination	PC Pins
Lead Spacing	2.067" (52.50mm)
Applications	DC Link, DC Filtering
Ratings	-
Features	Long Life

B32776G8306J000	EPCOS (TDK), 30µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32776	View
B32776G4306K000	EPCOS (TDK), 30µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32776	View
B32778J0207K000	EPCOS (TDK), 200µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized 12-DIP, B32778	View
B32778G0406K000	EPCOS (TDK), 40µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32778	View
B32774D0505K000	EPCOS (TDK), 5µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32774	View
B32778G0306J000	EPCOS (TDK), 30µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32778	View
B32776T0505K000	EPCOS (TDK), 5µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32776	View
B32778G4117K000	EPCOS (TDK), 110µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32778	View
B32778J4487K000	EPCOS (TDK), 480µF Film Capacitor 450V Polypropylene (PP), Metallized 12-DIP, B32778	View
B32776T1275K000	EPCOS (TDK), 2.7µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32776	View
B32776T4166K000	EPCOS (TDK), 16µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32776	View
B32774D0705K000	EPCOS (TDK), 7µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32774	View

B32778G8506K000

Part NumberB32778G8506K000
