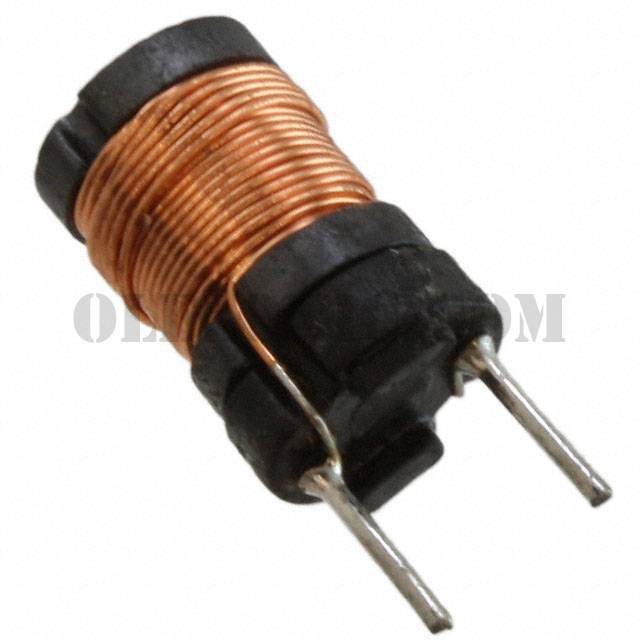

744743102


744743102

Part Number744743102

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744743102 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package100
ManufacturerWurth Electronics Inc.
SeriesWE-TI
PackagingTray
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance1mH
Tolerance±5%
Current Rating (Amps)420mA
Current - Saturation550mA
ShieldingUnshielded
DC Resistance (DCR)2.5Ohm Max
Q @ Freq-
Frequency - Self Resonant1.6MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder (Open)
Supplier Device Package-
Size / Dimension0.335" Dia (8.50mm)
Height - Seated (Max)0.492" (12.50mm)
