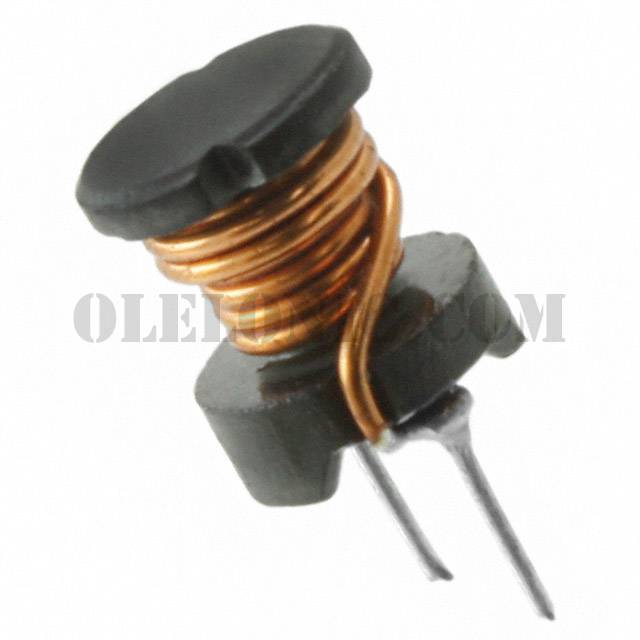

744772022

Part Number744772022

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 2.2UH 6A 10 MOHM TH

Datasheet744772022

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Unshielded Wirewound Inductor 6A 10mOhm Max Radial, Vertical Cylinder (Open)

To learn about the specification of 744772022, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744772022 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744772022.
We are offering 744772022 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744772022 - Product Attributes

744772022 - Related Products

More >>

744772471

Wurth Electronics Inc., 470µH Unshielded Wirewound Inductor 430mA 890mOhm Max Radial, Vertical Cylinder (Open), WE-TI

View

744772121

Wurth Electronics Inc., 120µH Unshielded Wirewound Inductor 850mA 220mOhm Max Radial, Vertical Cylinder, WE-TI

View

744772200

Wurth Electronics Inc., 20µH Unshielded Wirewound Inductor 2.6A 50mOhm Max Radial, Vertical Cylinder (Open), WE-TI

View

744772681

Wurth Electronics Inc., 680µH Unshielded Wirewound Inductor 350mA 1.4Ohm Max Radial, Vertical Cylinder (Open), WE-TI

View

744772220

Wurth Electronics Inc., 22µH Unshielded Wirewound Inductor 2.3A 55mOhm Max Radial, Vertical Cylinder (Open), WE-TI

View

744732121

Wurth Electronics Inc., 120µH Unshielded Wirewound Inductor 1A 380mOhm Max Radial, Vertical Cylinder, WE-TI

View

7447221101

Wurth Electronics Inc., 100µH Unshielded Wirewound Inductor 2.45A 100mOhm Max Radial, Vertical Cylinder, 4 Leads, WE-TIF

View

744772390

Wurth Electronics Inc., 39µH Unshielded Wirewound Inductor 2.5A 90mOhm Max Radial, Vertical Cylinder (Open), WE-TI

View

7447462220

Wurth Electronics Inc., 22µH Unshielded Wirewound Inductor 1.8A 130mOhm Max Radial, Vertical Cylinder, WE-TI

View

744732102

Wurth Electronics Inc., 1mH Unshielded Wirewound Inductor 330mA 3.4Ohm Max Radial, Vertical Cylinder, WE-TI

View

7447221331

Wurth Electronics Inc., 330µH Unshielded Wirewound Inductor 1.35A 320mOhm Max Radial, Vertical Cylinder, 4 Leads, WE-TIF

View

744732015

Wurth Electronics Inc., 1.5µH Unshielded Wirewound Inductor 7A 10mOhm Max Radial, Vertical Cylinder, WE-TI

View

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	744772022
Standard Package	140
Manufacturer	Wurth Electronics Inc.
Series	WE-TI
Packaging	Tray
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	2.2µH
Tolerance	±20%
Current Rating (Amps)	6A
Current - Saturation	8A
Shielding	Unshielded
DC Resistance (DCR)	10mOhm Max
Q @ Freq	-
Frequency - Self Resonant	75.5MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Supplier Device Package	-
Size / Dimension	0.307" Dia (7.80mm)
Height - Seated (Max)	0.394" (10.00mm)
