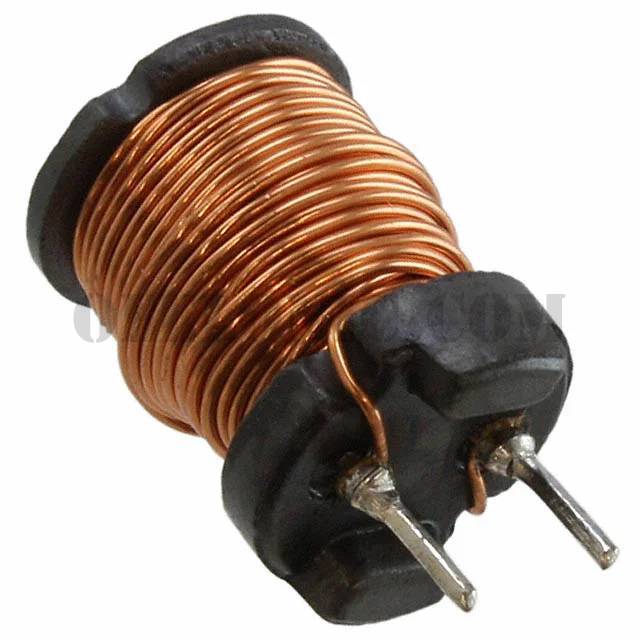

7447480471


7447480471

Part Number7447480471

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7447480471 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package80
ManufacturerWurth Electronics Inc.
SeriesWE-TI
PackagingTray
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance470µH
Tolerance±10%
Current Rating (Amps)1.15A
Current - Saturation1.15A
ShieldingUnshielded
DC Resistance (DCR)520mOhm Max
Q @ Freq-
Frequency - Self Resonant1.8MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder (Open)
Supplier Device Package-
Size / Dimension0.413" Dia (10.50mm)
Height - Seated (Max)0.571" (14.50mm)
