Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	74455068
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-PD4
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	6.8µH
Tolerance	±20%
Current Rating (Amps)	1.4A
Current - Saturation	1.2A
Shielding	Unshielded
DC Resistance (DCR)	130mOhm Max
Q @ Freq	-
Frequency - Self Resonant	29MHz
Ratings	-
Operating Temperature	-40°C ~ 100°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max)	0.115" (2.92mm)

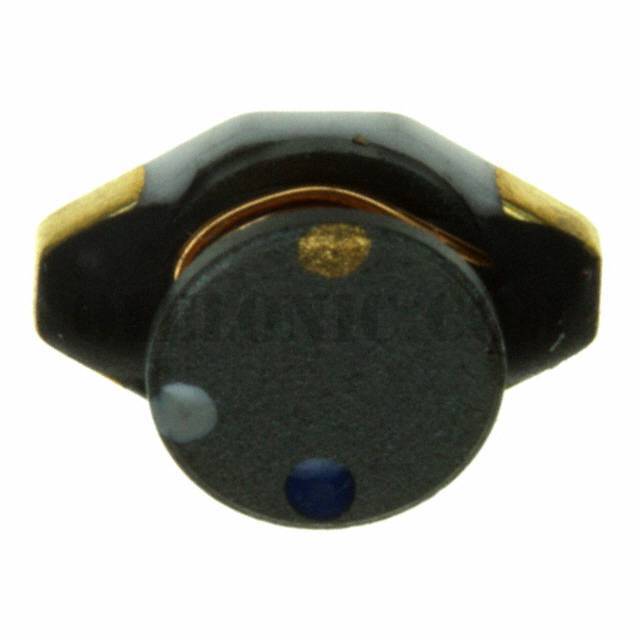

74455068	Wurth Electronics Inc., 6.8µH Unshielded Wirewound Inductor 1.4A 130mOhm Max Nonstandard, WE-PD4	View
74456233	Wurth Electronics Inc., 330µH Unshielded Wirewound Inductor 700mA 1.15Ohm Max Nonstandard, WE-PD4	View
74456115	Wurth Electronics Inc., 15µH Unshielded Wirewound Inductor 2.9A 60mOhm Max Nonstandard, WE-PD4	View
74455133	Wurth Electronics Inc., 33µH Unshielded Wirewound Inductor 600mA 510mOhm Max Nonstandard, WE-PD4	View
74455215	Wurth Electronics Inc., 150µH Unshielded Wirewound Inductor 250mA 2Ohm Max Nonstandard, WE-PD4	View
74456247	Wurth Electronics Inc., 470µH Unshielded Wirewound Inductor 600mA 1.7Ohm Max Nonstandard, WE-PD4	View
7445720	Wurth Electronics Inc., 100µH Unshielded Wirewound Inductor 2A 202mOhm Max Nonstandard, WE-PD4	View
74455222	Wurth Electronics Inc., 220µH Unshielded Wirewound Inductor 200mA 3.11Ohm Max Nonstandard, WE-PD4	View
74456122	Wurth Electronics Inc., 22µH Unshielded Wirewound Inductor 2.6A 95mOhm Max Nonstandard, WE-PD4	View
74456115	Wurth Electronics Inc., 15µH Unshielded Wirewound Inductor 2.9A 60mOhm Max Nonstandard, WE-PD4	View
74455047	Wurth Electronics Inc., 4.7µH Unshielded Wirewound Inductor 1.5A 90mOhm Max Nonstandard, WE-PD4	View
74456168	Wurth Electronics Inc., 68µH Unshielded Wirewound Inductor 1.6A 240mOhm Max Nonstandard, WE-PD4	View

74455068

Part Number74455068
