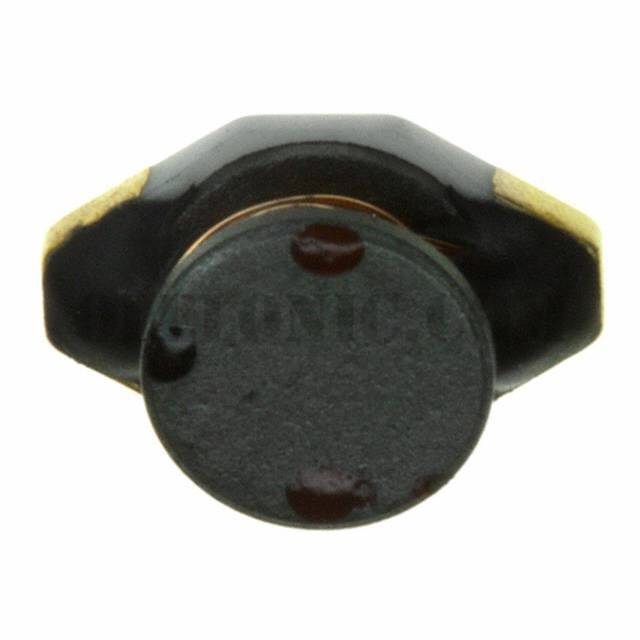

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	7445520
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-PD4
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	100µH
Tolerance	±20%
Current Rating (Amps)	300mA
Current - Saturation	310mA
Shielding	Unshielded
DC Resistance (DCR)	1.27Ohm Max
Q @ Freq	-
Frequency - Self Resonant	8MHz
Ratings	-
Operating Temperature	-40°C ~ 100°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max)	0.115" (2.92mm)
