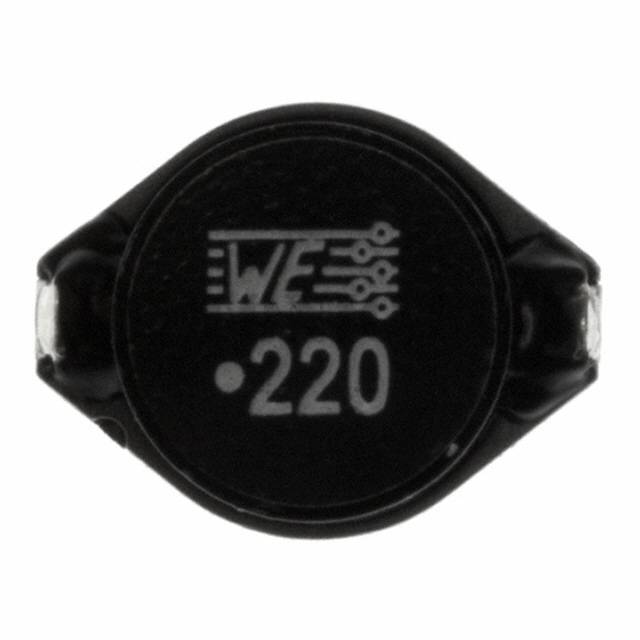

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	74458122
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-PD4
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±20%
Current Rating (Amps)	3.5A
Current - Saturation	7A
Shielding	Unshielded
DC Resistance (DCR)	47mOhm Max
Q @ Freq	-
Frequency - Self Resonant	13MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.730" L x 0.600" W (18.54mm x 15.24mm)
Height - Seated (Max)	0.280" (7.11mm)
