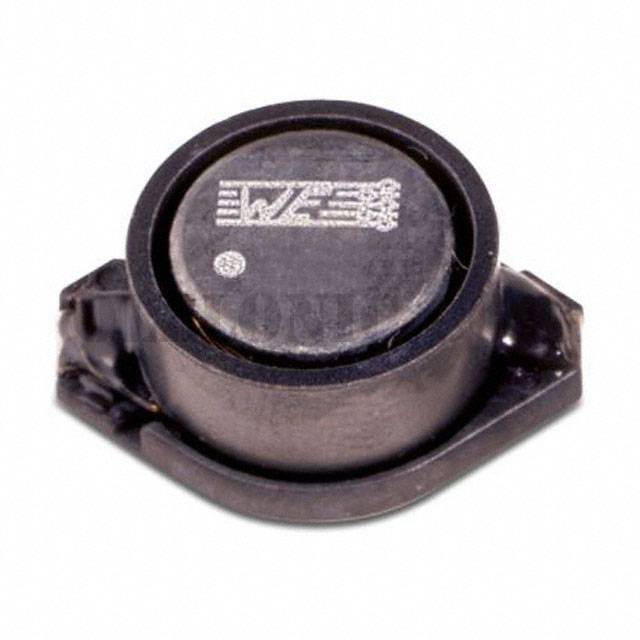

Categories	Inductors, Coils, Chokes / Fixed Inductors
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-PD4
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	150µH
Tolerance	±10%
Current Rating (Amps)	1A
Current - Saturation	1.2A
Shielding	Unshielded
DC Resistance (DCR)	590mOhm Max
Q @ Freq	-
Frequency - Self Resonant	5.3MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max)	0.209" (5.30mm)

74456147	Wurth Electronics Inc., 47µH Unshielded Wirewound Inductor 1.8A 190mOhm Max Nonstandard, WE-PD4	View
74455147	Wurth Electronics Inc., 47µH Unshielded Wirewound Inductor 500mA 640mOhm Max Nonstandard, WE-PD4	View
74456068	Wurth Electronics Inc., 6.8µH Unshielded Wirewound Inductor 3.8A 34mOhm Max Nonstandard, WE-PD4	View
74456115	Wurth Electronics Inc., 15µH Unshielded Wirewound Inductor 2.9A 60mOhm Max Nonstandard, WE-PD4	View
74456215	Wurth Electronics Inc., 150µH Unshielded Wirewound Inductor 1A 590mOhm Max Nonstandard, WE-PD4	View
74455033	Wurth Electronics Inc., 3.3µH Unshielded Wirewound Inductor 2A 80mOhm Max Nonstandard, WE-PD4	View
74456047	Wurth Electronics Inc., 4.7µH Unshielded Wirewound Inductor 5A 19mOhm Max Nonstandard, WE-PD4	View
74456133	Wurth Electronics Inc., 33µH Unshielded Wirewound Inductor 2.3A 120mOhm Max Nonstandard, WE-PD4	View
74455047	Wurth Electronics Inc., 4.7µH Unshielded Wirewound Inductor 1.5A 90mOhm Max Nonstandard, WE-PD4	View
74456247	Wurth Electronics Inc., 470µH Unshielded Wirewound Inductor 600mA 1.7Ohm Max Nonstandard, WE-PD4	View
74455022	Wurth Electronics Inc., 2.2µH Unshielded Wirewound Inductor 2.4A 70mOhm Max Nonstandard, WE-PD4	View
74457133	Wurth Electronics Inc., 33µH Unshielded Wirewound Inductor 3.4A 70mOhm Max Nonstandard, WE-PD4	View

74456215

Part Number74456215
