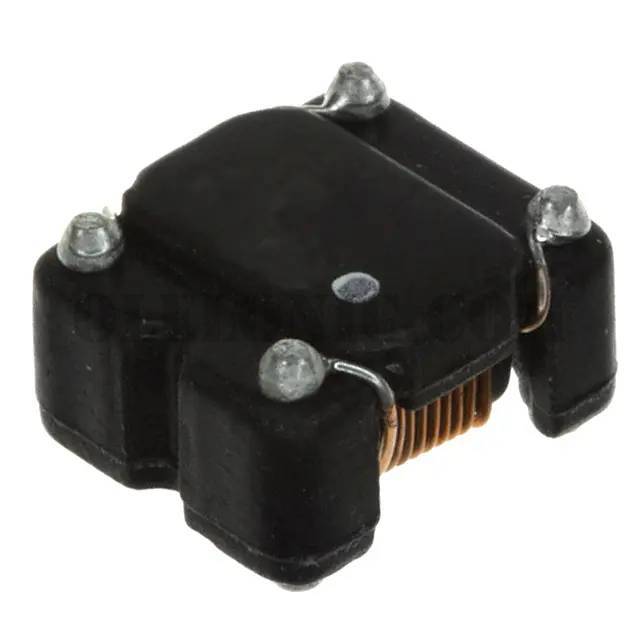

Part Number744272392

ManufacturerWurth Electronics Inc.

DescriptionCMC 3.9MH 520MA 2LN 9.6 KOHM SMD

Datasheet744272392

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3.9mH @ 100kHz 2 Line Common Mode Choke Surface Mount 9.6 kOhms @ 3MHz 520mA DCR 540mOhm

To learn about the specification of 744272392, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744272392 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744272392.
We are offering 744272392 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744272392 - Product Attributes

744272392 - Related Products

More >>

744226S

Wurth Electronics Inc., 10µH @ 1kHz 2 Line Common Mode Choke Surface Mount 920 Ohms @ 110MHz 1.6A DCR 80mOhm, WE-SL2

View

744272222

Wurth Electronics Inc., 2.2mH @ 100kHz 2 Line Common Mode Choke Surface Mount 7.5 kOhms @ 4MHz 750mA DCR 300mOhm, WE-SL5

View

744272392

Wurth Electronics Inc., 3.9mH @ 100kHz 2 Line Common Mode Choke Surface Mount 9.6 kOhms @ 3MHz 520mA DCR 540mOhm, WE-SL5

View

744228

Wurth Electronics Inc., 25µH @ 1kHz 2 Line Common Mode Choke Surface Mount 2.8 kOhms @ 45MHz 1A DCR 120mOhm, WE-SL2

View

744272471

Wurth Electronics Inc., 470µH @ 100kHz 2 Line Common Mode Choke Surface Mount 1.75 kOhms @ 10MHz 1.6A DCR 65mOhm, WE-SL5

View

744227

Wurth Electronics Inc., 51µH @ 1kHz 2 Line Common Mode Choke Surface Mount 5.5 kOhms @ 10MHz 1A DCR 160mOhm, WE-SL2

View

744272392

Wurth Electronics Inc., 3.9mH @ 100kHz 2 Line Common Mode Choke Surface Mount 9.6 kOhms @ 3MHz 520mA DCR 540mOhm, WE-SL5

View

744220

Wurth Electronics Inc., 4.7mH @ 100kHz 2 Line Common Mode Choke Surface Mount 20 kOhms @ 1MHz 500mA DCR 750mOhm, WE-SL2

View

744221

Wurth Electronics Inc., 2mH @ 100kHz 2 Line Common Mode Choke Surface Mount 9.2 kOhms @ 2MHz 600mA DCR 420mOhm, WE-SL2

View

744227S

Wurth Electronics Inc., 51µH @ 1kHz 2 Line Common Mode Choke Surface Mount 5.5 kOhms @ 30MHz 1A DCR 160mOhm, WE-SL2

View

744226

Wurth Electronics Inc., 10µH @ 1kHz 2 Line Common Mode Choke Surface Mount 920 Ohms @ 100MHz 1.6A DCR 80mOhm, WE-SL2

View

744272121

Wurth Electronics Inc., 120µH @ 100kHz 2 Line Common Mode Choke Surface Mount 460 Ohms @ 30MHz 2.5A DCR 25mOhm, WE-SL5

View

Categories	Filters / Common Mode Chokes
Datasheet	744272392
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-SL5
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	9.6 kOhms @ 3MHz
Inductance @ Frequency	3.9mH @ 100kHz
Current Rating (Max)	520mA
DC Resistance (DCR) (Max)	540mOhm
Voltage Rating - DC	80V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.394" L x 0.343" W (10.00mm x 8.70mm)
Height (Max)	0.256" (6.50mm)
Package / Case	Horizontal, 4 PC Pad
