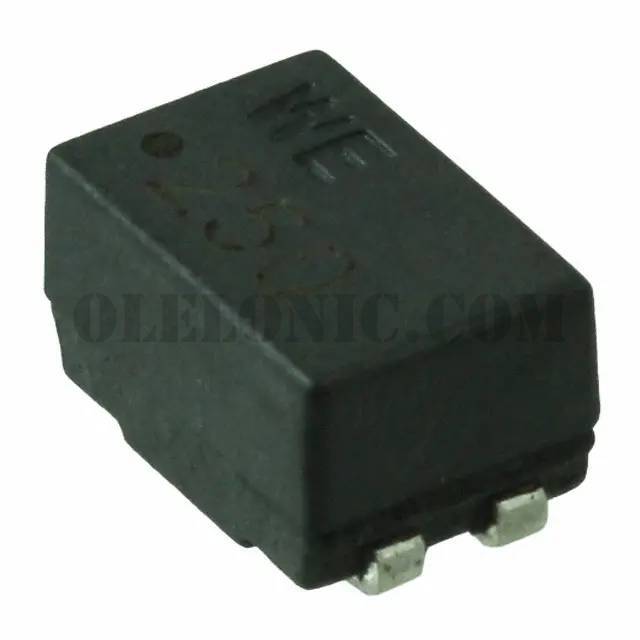

744221


744221

Part Number744221

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744221 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1
ManufacturerWurth Electronics Inc.
SeriesWE-SL2
PackagingCut Tape (CT)
Part StatusActive
Filter TypeSignal Line
Number of Lines2
Impedance @ Frequency9.2 kOhms @ 2MHz
Inductance @ Frequency2mH @ 100kHz
Current Rating (Max)600mA
DC Resistance (DCR) (Max)420mOhm
Voltage Rating - DC80V
Voltage Rating - AC-
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max)0.209" (5.30mm)
Package / CaseHorizontal, 4 PC Pad
