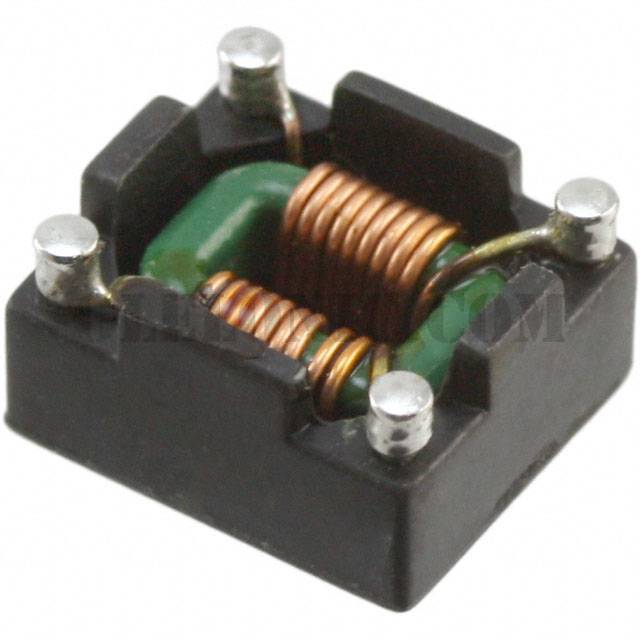

744273102


744273102

Part Number744273102

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744273102 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1000
ManufacturerWurth Electronics Inc.
SeriesWE-SL5 HC
PackagingTape & Reel (TR)
Part StatusActive
Filter TypeSignal Line
Number of Lines2
Impedance @ Frequency1 kOhms @ 100MHz
Inductance @ Frequency11µH @ 100kHz
Current Rating (Max)2.5A
DC Resistance (DCR) (Max)30mOhm
Voltage Rating - DC80V
Voltage Rating - AC-
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.374" L x 0.327" W (9.50mm x 8.30mm)
Height (Max)0.209" (5.30mm)
Package / CaseHorizontal, 4 PC Pad
