Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	PK Series
Standard Package	2000
Manufacturer	Rubycon
Series	PK
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	460mA @ 120Hz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

400PK33MEFC12.5X25	Rubycon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
10PK1000MEFC8X11.5	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK680MEFC10X16	Rubycon, 680µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
50PK4700MEFC18X40	Rubycon, 4700µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
450PK22MEFC12.5X25	Rubycon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
450PK1MEFC6.3X11	Rubycon, 1µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK4700MEFC16X35.5	Rubycon, 4700µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK470MEFC8X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK100MEFCTA5X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
50PK470MEFC10X20	Rubycon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
160PK22MEFC10X12.5	Rubycon, 22µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
450PK47MEFC16X31.5	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View

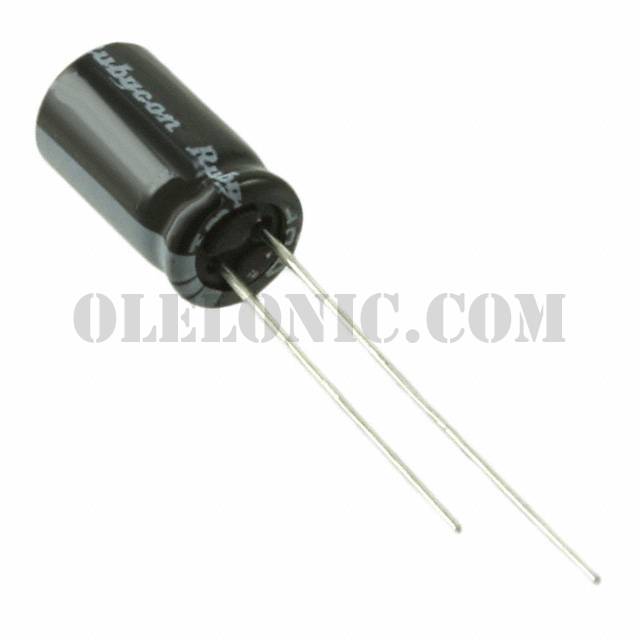

6.3PK680MEFC6.3X11

Part Number6.3PK680MEFC6.3X11
