Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	PK Series
Standard Package	1000
Manufacturer	Rubycon
Series	PK
Packaging	Bulk
Part Status	Active
Capacitance	3300µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.6A @ 120Hz
Ripple Current @ High Frequency	1.84A @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

160PK100MEFC12.5X25	Rubycon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
160PK47MEFC10X20	Rubycon, 47µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
100PK10MEFC5X11	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
10PK6800MEFC12.5X25	Rubycon, 6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK4700MEFC16X25	Rubycon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
50PK330MEFC10X16	Rubycon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK2200MEFC12.5X20	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK4700MEFC16X35.5	Rubycon, 4700µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
450PK2R2MEFC8X11.5	Rubycon, 2.2µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK470MEFCT810X12.5	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK220MEFC6.3X11	Rubycon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK10000MEFC18X35.5	Rubycon, 10000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View

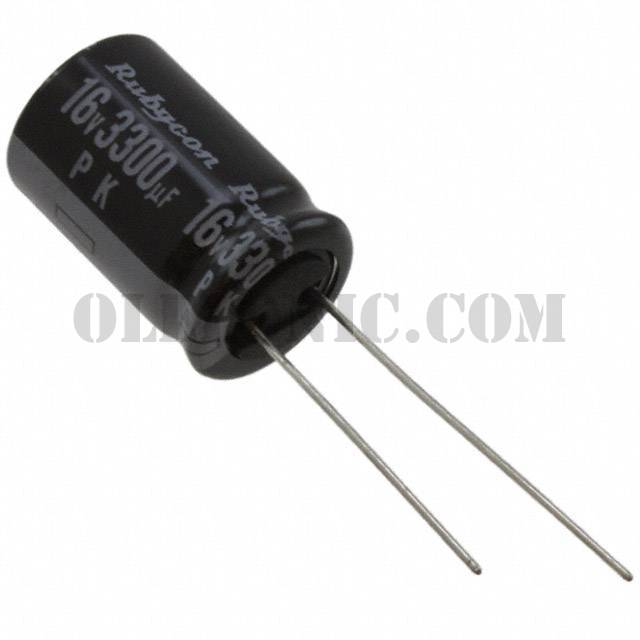

16PK3300MEFC12.5X20

Part Number16PK3300MEFC12.5X20
