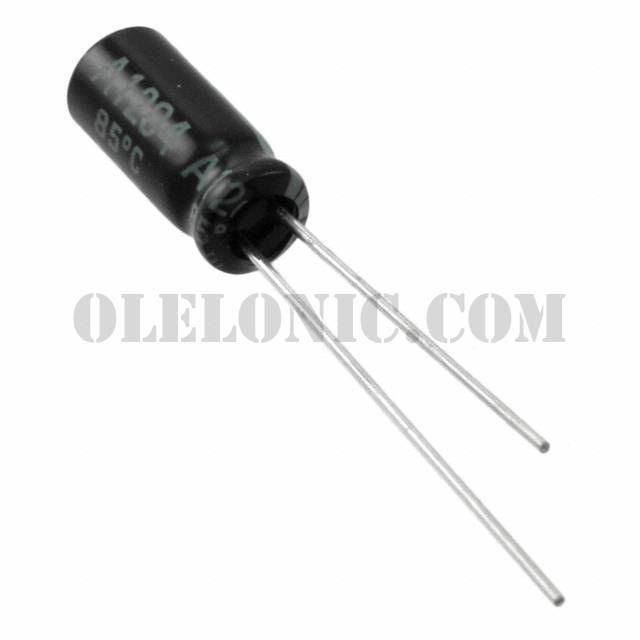

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	PK Series
Standard Package	3000
Manufacturer	Rubycon
Series	PK
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	140mA @ 120Hz
Ripple Current @ High Frequency	168mA @ 10kHz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

50PK1MEFC5X11	Rubycon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK470MEFCT810X12.5	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
250PK1MEFC6.3X11	Rubycon, 1µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK1000MEFC10X12.5	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
50PK100MEFC8X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK4700MEFC16X35.5	Rubycon, 4700µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
200PK10MEFC8X11.5	Rubycon, 10µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK100MEFC6.3X11	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK470MEFCT810X12.5	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK100MEFCTA5X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
10PK6800MEFC12.5X25	Rubycon, 6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
450PK4R7MEFC10X12.5	Rubycon, 4.7µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View

10PK100MEFC5X11

Part Number10PK100MEFC5X11
