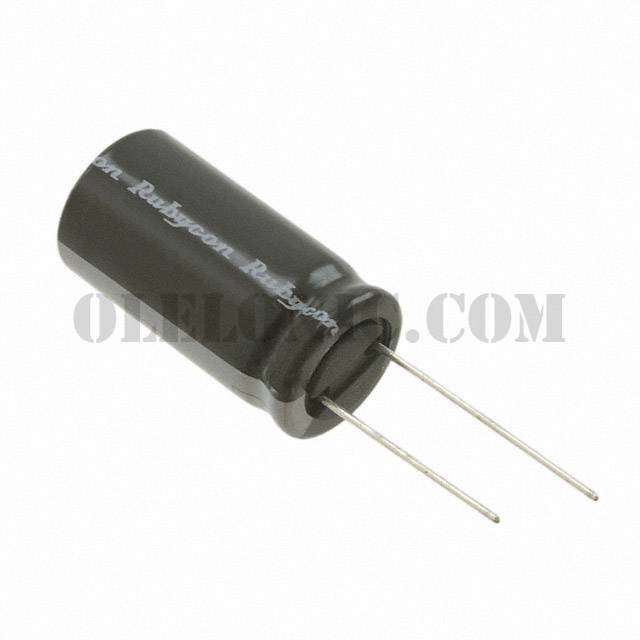

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	PK Series
Standard Package	200
Manufacturer	Rubycon
Series	PK
Packaging	Bulk
Part Status	Active
Capacitance	6800µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.44A @ 120Hz
Ripple Current @ High Frequency	2.806A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

25PK6800MEFC16X31.5	Rubycon, 6800µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK4700MEFC16X35.5	Rubycon, 4700µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK1000MEFC10X16	Rubycon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK1000MEFC10X20	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
50PK100MEFC8X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK100MEFCTA5X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK1000MEFC10X12.5	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
160PK22MEFC10X12.5	Rubycon, 22µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
10PK1000MEFC8X11.5	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK4700MEFC12.5X25	Rubycon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK330MEFC10X12.5	Rubycon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK680MEFC10X12.5	Rubycon, 680µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View

25PK6800MEFC16X31.5

Part Number25PK6800MEFC16X31.5
