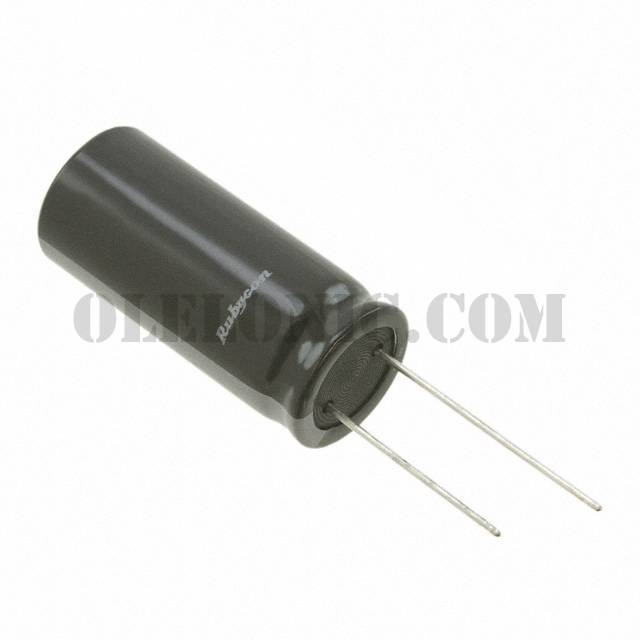

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	QXW Series
Standard Package	200
Manufacturer	Rubycon
Series	QXW
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	730mA @ 120Hz
Ripple Current @ High Frequency	1.095A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

450QXW15MEFR8X30	Rubycon, 15µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW82MEFC14.5X35	Rubycon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW120MEFC18X31.5	Rubycon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW220MEFC18X50	Rubycon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW18MEFR8X35	Rubycon, 18µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
420QXW27MEFR8X45	Rubycon, 27µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW39MEFC10X40	Rubycon, 39µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW68MEFC12.5X40	Rubycon, 68µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
400QXW33MEFR8X45	Rubycon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW56MEFC12.5X35	Rubycon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW12MEFR8X25	Rubycon, 12µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW47MEFC10X45	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View

450QXW100MEFC16X35

Part Number450QXW100MEFC16X35
