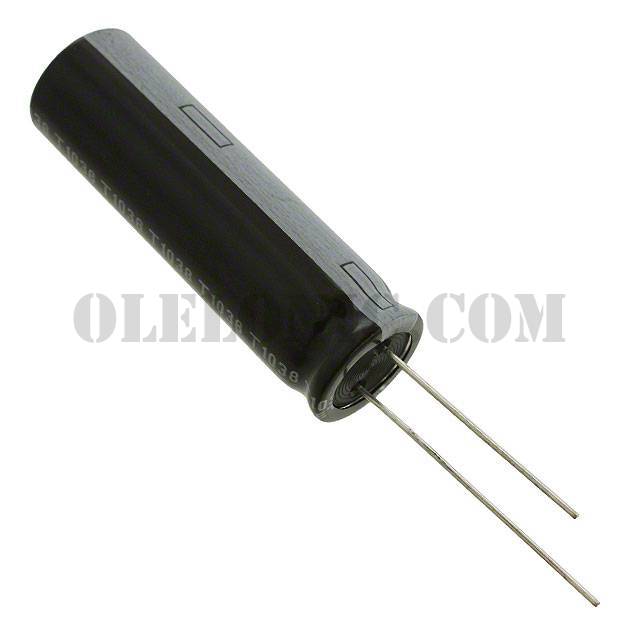

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	QXW Series
Standard Package	500
Manufacturer	Rubycon
Series	QXW
Packaging	Bulk
Part Status	Active
Capacitance	68µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	560mA @ 120Hz
Ripple Current @ High Frequency	840mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

450QXW22MEFR8X45	Rubycon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW56MEFC12.5X35	Rubycon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW12MEFR8X25	Rubycon, 12µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
400QXW27MEFR8X35	Rubycon, 27µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
420QXW22MEFR8X40	Rubycon, 22µF 420V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW100MEFC16X35	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW180MEFC18X45	Rubycon, 180µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
400QXW18MEFR8X25	Rubycon, 18µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW150MEFC18X40	Rubycon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW39MEFC10X40	Rubycon, 39µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW68MEFC12.5X40	Rubycon, 68µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View
450QXW120MEFC18X31.5	Rubycon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, QXW	View

450QXW68MEFC12.5X40

Part Number450QXW68MEFC12.5X40
