Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	2SC5488A
Standard Package	8000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	10V
Frequency - Transition	7GHz
Noise Figure (dB Typ @ f)	1dB @ 1GHz
Gain	12dB
Power - Max	100mW
DC Current Gain (hFE) (Min) @ Ic, Vce	90 @ 20mA, 5V
Current - Collector (Ic) (Max)	70mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount

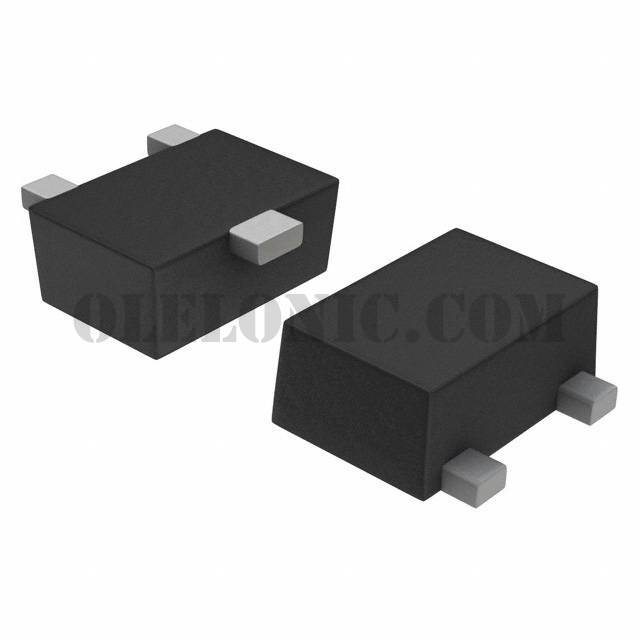

Package / Case	3-SMD, Flat Leads
Supplier Device Package	3-SSFP
