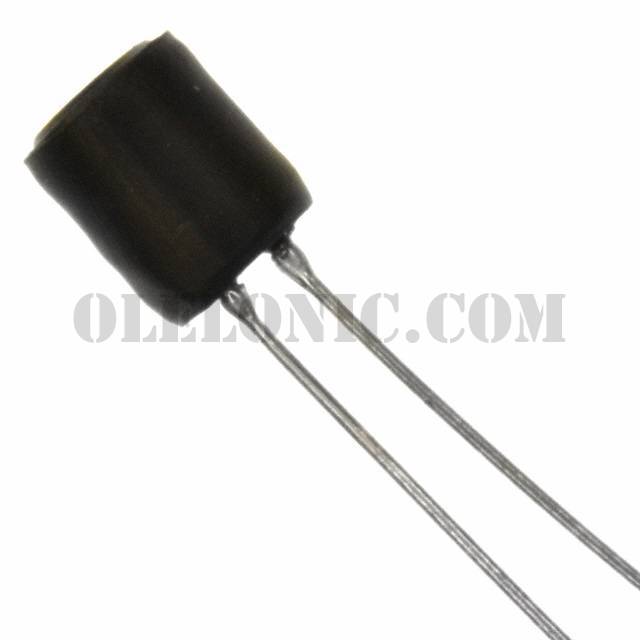

22R224C

22R224C

Part Number22R224C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 220UH 430MA 830 MOHM

Datasheet2200R Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220µH Unshielded Wirewound Inductor 430mA 830mOhm Max Radial, Vertical Cylinder

To learn about the specification of 22R224C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 22R224C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 22R224C.
We are offering 22R224C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

22R224C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2200R Series
Standard Package	100
Manufacturer	Murata Power Solutions Inc.
Series	2200R
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	220µH
Tolerance	±10%
Current Rating (Amps)	430mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	830mOhm Max
Q @ Freq	100 @ 100kHz
Frequency - Self Resonant	4.4MHz
Ratings	-
Operating Temperature	-25°C ~ 70°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
