Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	PK Series
Standard Package	2000
Manufacturer	Rubycon
Series	PK
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	660mA @ 120Hz
Ripple Current @ High Frequency	792mA @ 10kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

200PK10MEFC8X11.5	Rubycon, 10µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK2200MEFC12.5X20	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
160PK100MEFC12.5X25	Rubycon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
350PK22MEFC12.5X20	Rubycon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
63PK47MEFCT16.3X11	Rubycon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK1000MEFCT810X20	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK10000MEFCGC18X35.5	Rubycon, 10000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
250PK1MEFC6.3X11	Rubycon, 1µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK470MEFC8X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
200PK100MEFC12.5X25	Rubycon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
250PK2R2MEFC6.3X11	Rubycon, 2.2µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
250PK33MEFCT810X20	Rubycon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View

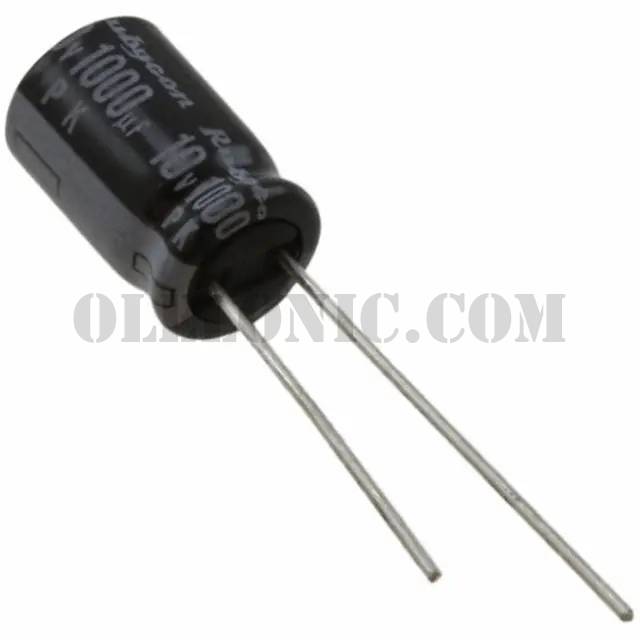

10PK1000MEFC8X11.5

Part Number10PK1000MEFC8X11.5
