Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	ZUMTS17N
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	11V
Frequency - Transition	3.2GHz
Noise Figure (dB Typ @ f)	-
Gain	-
Power - Max	330mW
DC Current Gain (hFE) (Min) @ Ic, Vce	56 @ 5mA, 10V
Current - Collector (Ic) (Max)	50mA
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

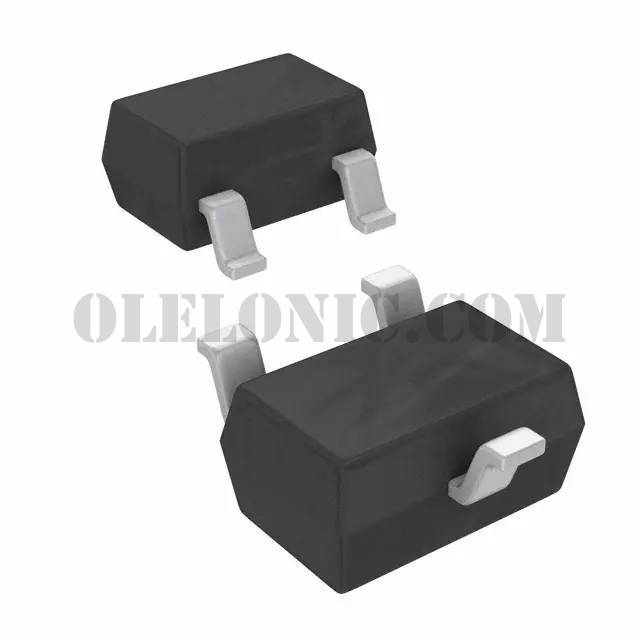

Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323
Base Part Number	ZUMTS17
