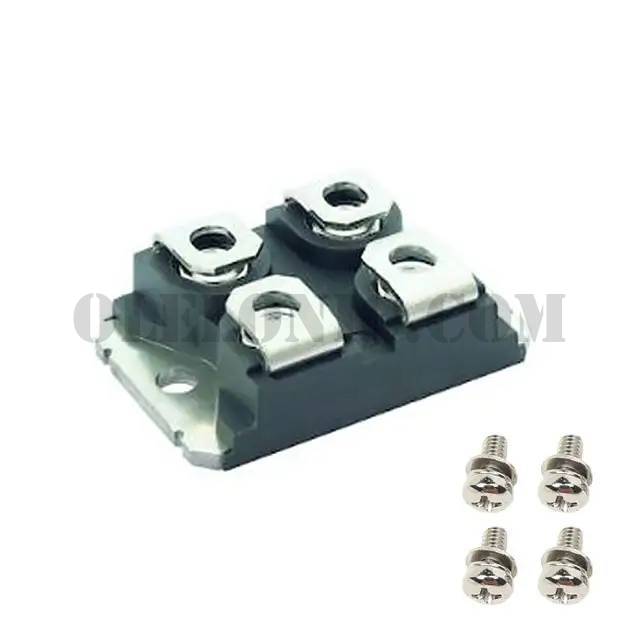

VS-FC420SA15

VS-FC420SA15

Part NumberVS-FC420SA15

ManufacturerVishay Semiconductor Diodes Division

DescriptionSINGLE SWITCH PWR MODULE SOT-227

DatasheetVS-FC420SA15

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 150V 400A (Tc) 909W (Tc) Chassis Mount SOT-227

To learn about the specification of VS-FC420SA15, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-FC420SA15 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-FC420SA15.
We are offering VS-FC420SA15 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-FC420SA15 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	VS-FC420SA15
Standard Package	10
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25°C	400A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.75mOhm @ 200A, 10V
Vgs(th) (Max) @ Id	5.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	250nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	13700pF @ 25V
FET Feature	-
Power Dissipation (Max)	909W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SOT-227
Package / Case	SOT-227-4, miniBLOC
