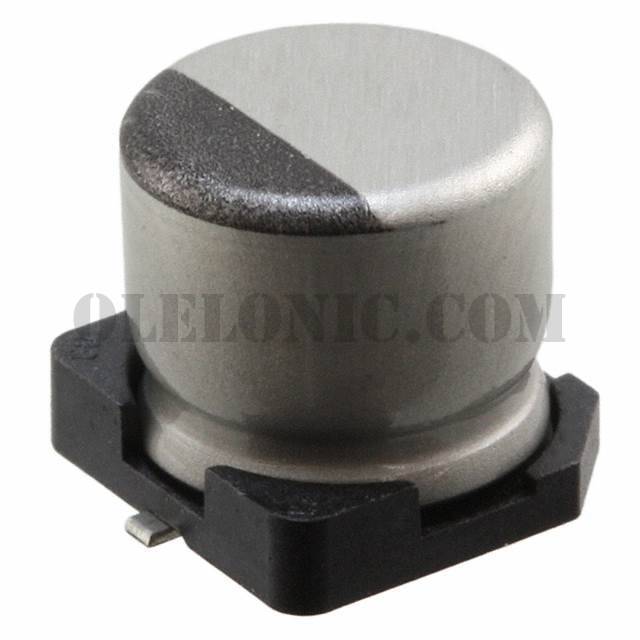

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUA Series
Standard Package	1
Manufacturer	Nichicon
Series	UUA
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	32mA @ 120Hz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UUA1V101MNL1GS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1E330MCL1GS	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1A101MCL1GS	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA0J471MNL1GS	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1C101MCL1GS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1C221MNL1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA0J331MNL1GS	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1C221MNL1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1E100MCL1GS	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1A221MNL1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1H101MNL1GS	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA0J101MCL1GS	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View

UUA1H100MCL1GS

Part NumberUUA1H100MCL1GS
