Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUA Series
Standard Package	1
Manufacturer	Nichicon
Series	UUA
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	151mA @ 120Hz
Ripple Current @ High Frequency	226.5mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UUA1E221MNL1GS	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1H330MNL1GS	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1V100MCL1GS	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1A331MNL1GS	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1H4R7MCL1GS	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1A101MCL1GS	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1H4R7MCL1GS	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1H100MCL1GS	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1H010MCL1GS	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1V101MNL1GS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA0J331MNL1GS	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA0J101MCL1GS	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View

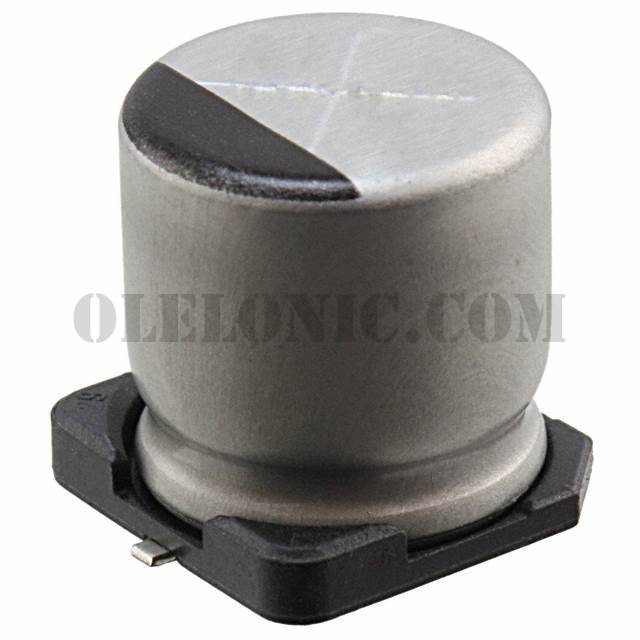

UUA1V101MNL1GS

Part NumberUUA1V101MNL1GS
