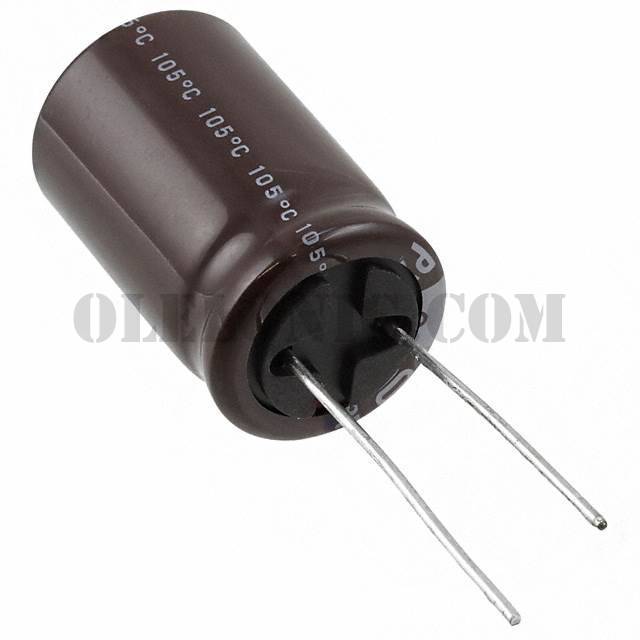

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPX Series
Standard Package	1
Manufacturer	Nichicon
Series	UPX
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	20000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.008A @ 120Hz
Ripple Current @ High Frequency	1.344A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPX1A471MPD1TD	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V470MPD1TD	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V2R2MPD	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V220MPD1TD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V101MPD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V010MPD1TD	Nichicon, 1µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1A331MPD1TD	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1E221MHD1TO	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1C221MPD	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1A102MHD1TO	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V2R2MPD1TD	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1E471MHD1TN	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View

UPX1C102MHD1TN

Part NumberUPX1C102MHD1TN
