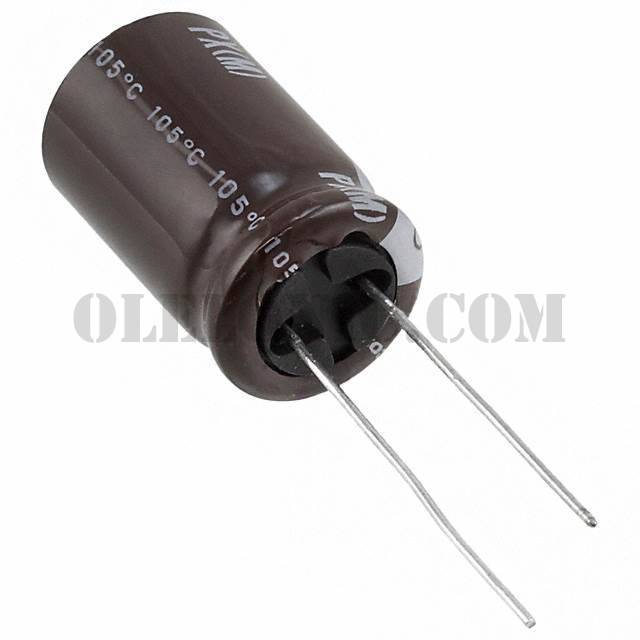

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPX Series
Standard Package	1
Manufacturer	Nichicon
Series	UPX
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	20000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	630mA @ 120Hz
Ripple Current @ High Frequency	840mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPX1C331MPD1TD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V101MPD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1A102MHD1TO	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V221MHD1TO	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V4R7MPD1TD	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1C471MHD1TO	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V010MPD1TD	Nichicon, 1µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V2R2MPD1TD	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V100MPD1TD	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1V010MPD	Nichicon, 1µF 35V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1E102MHD	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View
UPX1C222MHD	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, UPX	View

UPX1E221MHD1TO

Part NumberUPX1E221MHD1TO
