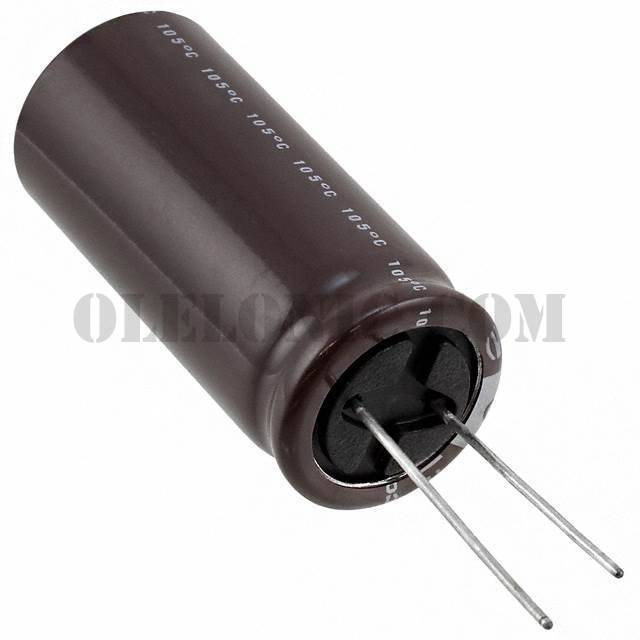

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPX Series
Standard Package	50
Manufacturer	Nichicon
Series	UPX
Packaging	Bulk
Part Status	Not For New Designs
Capacitance	3300µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	20000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.638A @ 120Hz
Ripple Current @ High Frequency	2.184A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.634" (41.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
