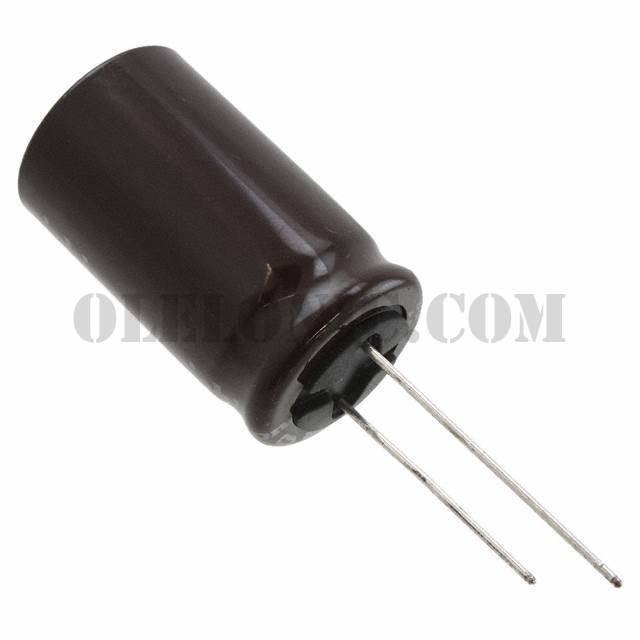

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UAS Series
Standard Package	50
Manufacturer	Nichicon
Series	UAS
Packaging	Bulk
Part Status	Active
Capacitance	82µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	430mA @ 120Hz
Ripple Current @ High Frequency	688mA @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UAS2G560MHD6	Nichicon, 56µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G390MHD6	Nichicon, 39µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G680MHD	Nichicon, 68µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G330MHD	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G270MHD	Nichicon, 27µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G390MHD	Nichicon, 39µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G680MHD6	Nichicon, 68µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G220MHD	Nichicon, 22µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G560MHD	Nichicon, 56µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G470MHD	Nichicon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G820MHD6	Nichicon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View
UAS2G820MHD	Nichicon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UAS	View

UAS2G820MHD6

Part NumberUAS2G820MHD6
