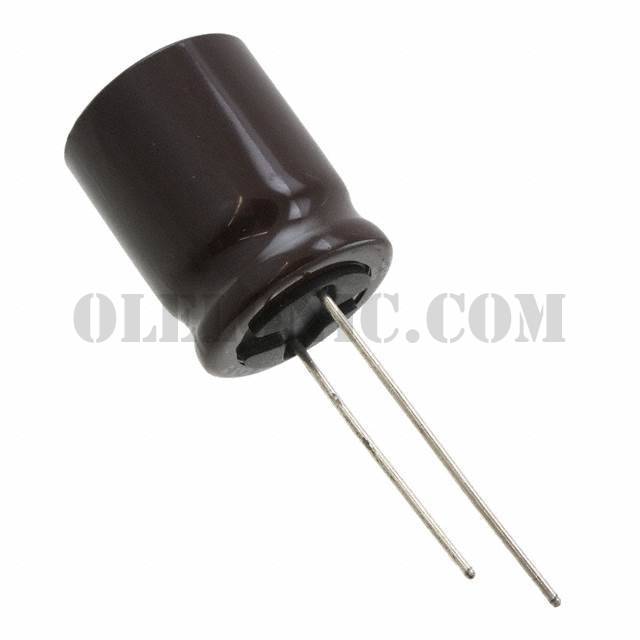

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UAS2G330MHD Spec
Standard Package	50
Manufacturer	Nichicon
Series	UAS
Packaging	Bulk
Part Status	Active
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	225mA @ 120Hz
Ripple Current @ High Frequency	360mA @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
