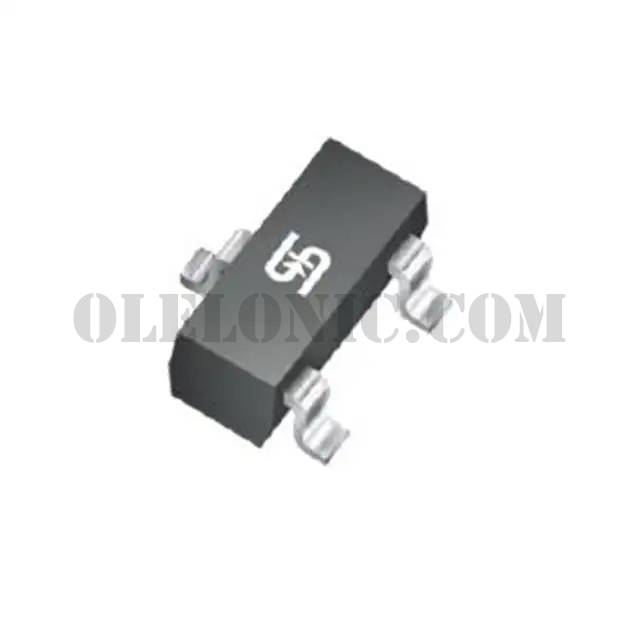

TSM2N7002KCX RFG

TSM2N7002KCX RFG

Part NumberTSM2N7002KCX RFG

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET N-CH 60V 300MA SOT23

DatasheetTSM2N7002K

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 300mA (Ta) 300mW (Ta) Surface Mount SOT-23

To learn about the specification of TSM2N7002KCX RFG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM2N7002KCX RFG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM2N7002KCX RFG.
We are offering TSM2N7002KCX RFG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM2N7002KCX RFG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM2N7002K
Standard Package	3000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2Ohm @ 300mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.4nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	30pF @ 25V
FET Feature	-
Power Dissipation (Max)	300mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
