STL33N60DM2

STL33N60DM2

Part NumberSTL33N60DM2

ManufacturerSTMicroelectronics

DescriptionN-CHANNEL 600 V, 0.115 OHM TYP.,

DatasheetSTL33N60DM2 Datasheet

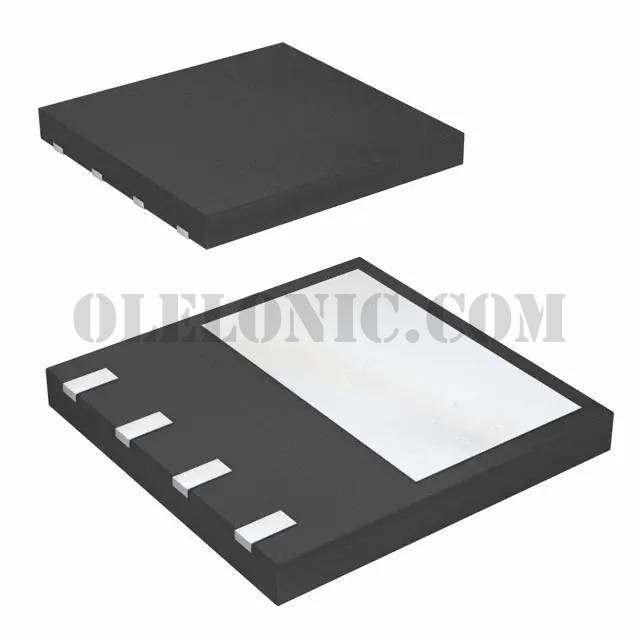

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 21A (Tc) 150W (Tc) Surface Mount PowerFlat™ (8x8) HV

To learn about the specification of STL33N60DM2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL33N60DM2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL33N60DM2.
We are offering STL33N60DM2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL33N60DM2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL33N60DM2 Datasheet
Standard Package	1
Manufacturer	STMicroelectronics
Series	MDmesh™ DM2
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	21A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	140mOhm @ 10.5A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	43nC @ 10V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1870pF @ 100V
FET Feature	-
Power Dissipation (Max)	150W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (8x8) HV
Package / Case	8-PowerVDFN
