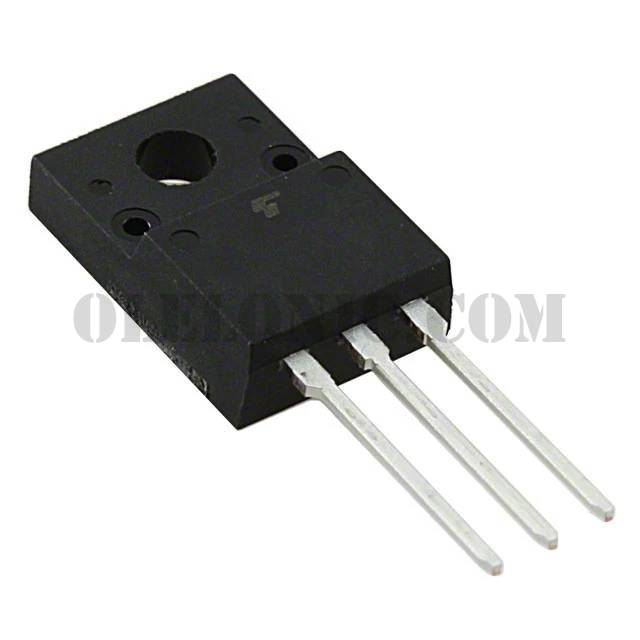

TK13A60D(STA4,Q,M)

TK13A60D(STA4,Q,M)

Part NumberTK13A60D(STA4,Q,M)

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 600V 13A TO220SIS

DatasheetTK13A60D

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 13A (Ta) 50W (Tc) Through Hole TO-220SIS

To learn about the specification of TK13A60D(STA4,Q,M), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TK13A60D(STA4,Q,M) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TK13A60D(STA4,Q,M).
We are offering TK13A60D(STA4,Q,M) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TK13A60D(STA4,Q,M) - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TK13A60D
Standard Package	2500
Manufacturer	Toshiba Semiconductor and Storage
Series	π-MOSVII
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	13A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	430mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	40nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2300pF @ 25V
FET Feature	-
Power Dissipation (Max)	50W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220SIS
Package / Case	TO-220-3 Full Pack
