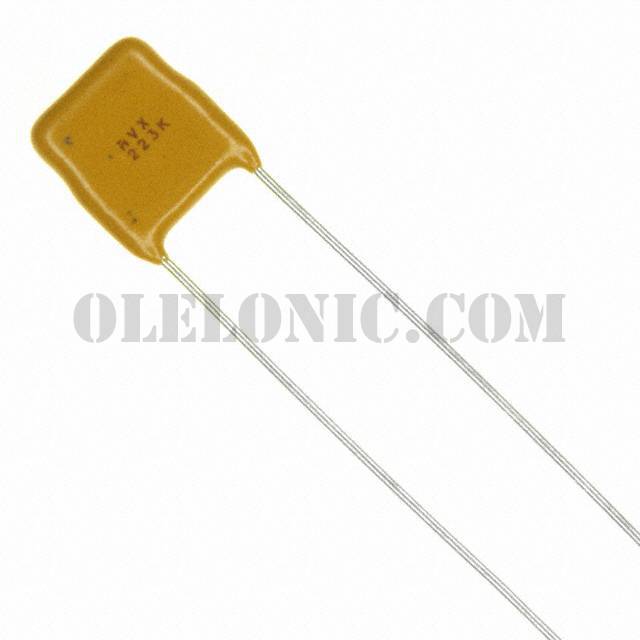

Categories	Capacitors / Ceramic Capacitors
Datasheet	SV Series
Standard Package	300
Manufacturer	AVX Corporation
Series	SV
Packaging	Bulk
Part Status	Active
Capacitance	4700pF
Tolerance	±10%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.300" L x 0.200" W (7.62mm x 5.08mm)
Height - Seated (Max)	0.360" (9.14mm)
Thickness (Max)	-
Lead Spacing	0.200" (5.08mm)
Lead Style	Straight

SV13CC222JAR	AVX Corporation, 2200pF ±5% 630V Ceramic Capacitor X7R Radial, SV	View
SV09AC474KAR	AVX Corporation, 0.47µF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial, SV	View
SV13CC101JAR	AVX Corporation, 100pF ±5% 630V Ceramic Capacitor X7R Radial, SV	View
SV14AA103KAR	AVX Corporation, 10000pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 Radial, SV	View
SV09CC185KAR	AVX Corporation, 1.8µF ±10% 630V Ceramic Capacitor X7R Radial, SV	View
SV03HC472MAR	AVX Corporation, 4700pF ±20% 3000V (3kV) Ceramic Capacitor X7R Radial, SV	View
SV17HA802JAR	AVX Corporation, 8000pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 Radial, SV	View
SV07KC332KAR	AVX Corporation, 3300pF ±10% 5000V (5kV) Ceramic Capacitor X7R Radial, SV	View
SV07GC473KAR	AVX Corporation, 0.047µF ±10% 2000V (2kV) Ceramic Capacitor X7R Radial, SV	View
SV07AC104KAR	AVX Corporation, 0.1µF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial, SV	View
SV02AC472KAR	AVX Corporation, 4700pF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial, SV	View
SV08AC224KAR	AVX Corporation, 0.22µF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial, SV	View

SV13GC472KAR

Part NumberSV13GC472KAR
