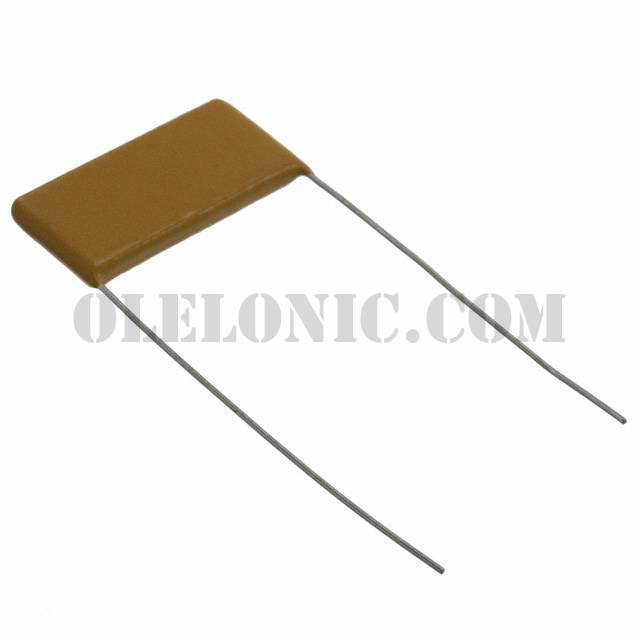

Categories	Capacitors / Ceramic Capacitors
Datasheet	SV Series
Standard Package	10
Manufacturer	AVX Corporation
Series	SV
Packaging	Bulk
Part Status	Active
Capacitance	2.2µF
Tolerance	±10%
Voltage - Rated	630V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.252" L x 0.200" W (31.80mm x 5.08mm)
Height - Seated (Max)	0.598" (15.20mm)
Thickness (Max)	-
Lead Spacing	1.098" (27.90mm)
Lead Style	Straight
