SSM6J801R,LF

SSM6J801R,LF

Part NumberSSM6J801R,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET P-CH 20V 6A 6-TSOP-F

DatasheetSSM6J801R

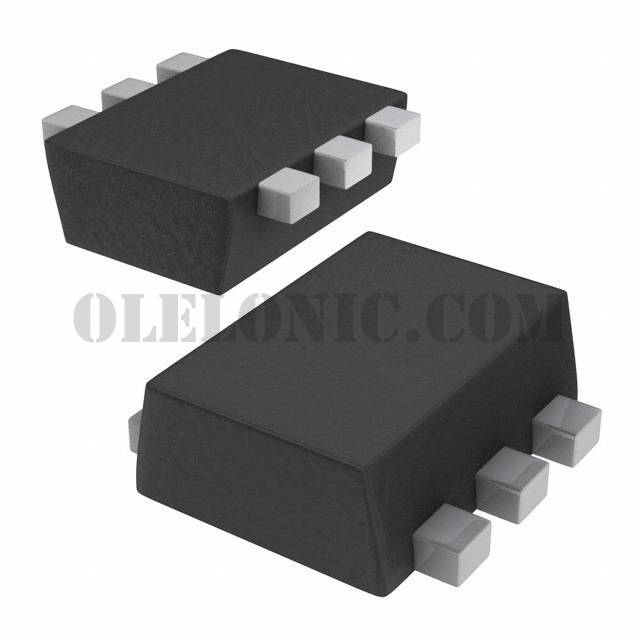

Package / Case6-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 6A (Ta) 1.5W (Ta) Surface Mount 6-TSOP-F

To learn about the specification of SSM6J801R,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM6J801R,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM6J801R,LF.
We are offering SSM6J801R,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM6J801R,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM6J801R
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVI
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	32.5mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	12.8nC @ 4.5V
Vgs (Max)	+6V, -8V
Input Capacitance (Ciss) (Max) @ Vds	840pF @ 10V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP-F
Package / Case	6-SMD, Flat Leads
