SSM3J374R,LF

SSM3J374R,LF

Part NumberSSM3J374R,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionSMALL SIGNAL MOSFET P-CH VDSS:-3

DatasheetSSM3J374R Datasheet

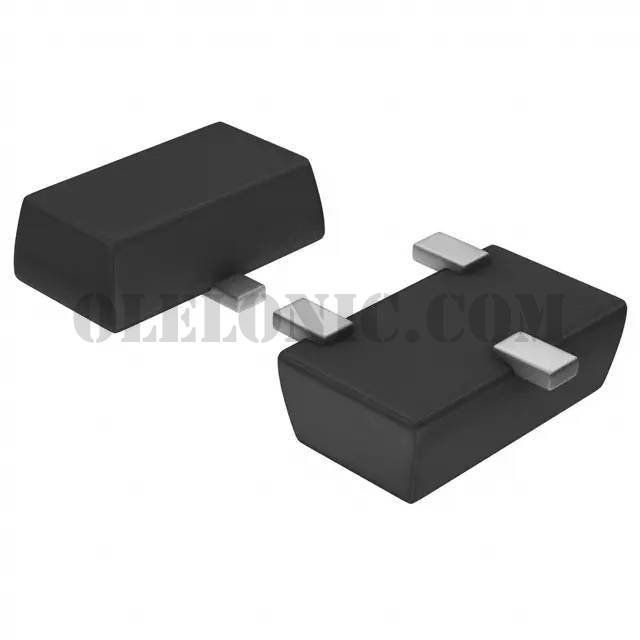

Package / CaseSOT-23-3 Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 4A (Ta) 1W (Ta) Surface Mount SOT-23F

To learn about the specification of SSM3J374R,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3J374R,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3J374R,LF.
We are offering SSM3J374R,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3J374R,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM3J374R Datasheet
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVI
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	71mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	2V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	5.9nC @ 10V
Vgs (Max)	+10V, -20V
Input Capacitance (Ciss) (Max) @ Vds	280pF @ 15V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	SOT-23F
Package / Case	SOT-23-3 Flat Leads
