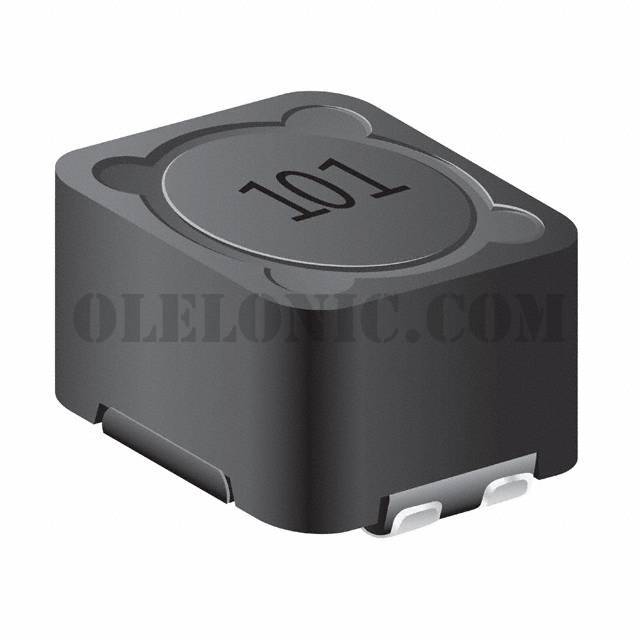

SRF1280-100M

Part NumberSRF1280-100M

ManufacturerBourns Inc.

DescriptionINDUCT ARRAY 2 COIL 10UH SMD

DatasheetSRF1280 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 40µH Inductance - Connected in Series 10µH Inductance - Connected in Parallel 24.1mOhm Max DC Resistance (DCR) - Parallel 6.04A Nonstandard

To learn about the specification of SRF1280-100M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRF1280-100M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRF1280-100M.
We are offering SRF1280-100M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SRF1280-100M - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	SRF1280 Series
Standard Package	1
Manufacturer	Bourns Inc.
Series	SRF1280
Packaging	Cut Tape (CT)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	10µH
Inductance - Connected In Series	40µH
Tolerance	±20%
Current Rating - Parallel	6.04A
Current Rating - Series	3.02A
Current Saturation - Parallel	11.2A
Current Saturation - Series	5.6A
DC Resistance (DCR) - Parallel	24.1mOhm Max
DC Resistance (DCR) - Series	92.1mOhm Max
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height	0.315" (8.00mm)
Base Part Number	SRF1280
