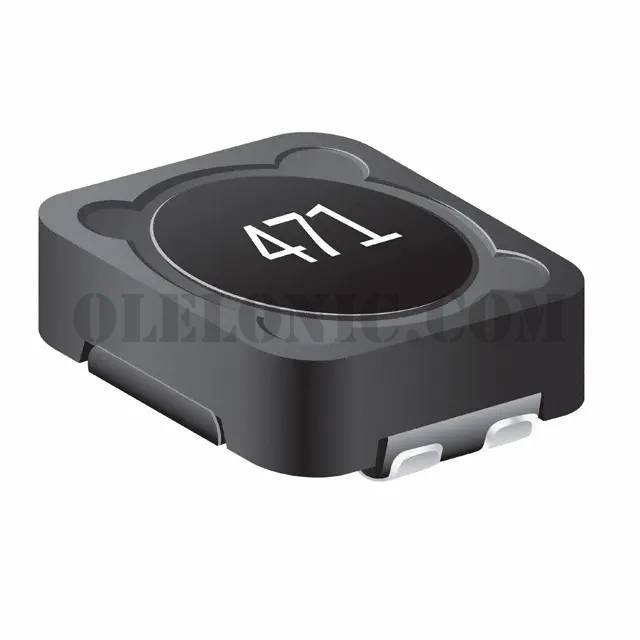

SRF0703-102M

Part NumberSRF0703-102M

ManufacturerBourns Inc.

DescriptionINDUCT ARRAY 2 COIL 1MH SMD

DatasheetSRF0703 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 4mH Inductance - Connected in Series 1mH Inductance - Connected in Parallel 6.11Ohm Max DC Resistance (DCR) - Parallel 260mA Nonstandard

To learn about the specification of SRF0703-102M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRF0703-102M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRF0703-102M.
We are offering SRF0703-102M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SRF0703-102M - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	SRF0703 Series
Standard Package	1500
Manufacturer	Bourns Inc.
Series	SRF0703
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	1mH
Inductance - Connected In Series	4mH
Tolerance	±20%
Current Rating - Parallel	260mA
Current Rating - Series	128mA
Current Saturation - Parallel	250mA
Current Saturation - Series	130mA
DC Resistance (DCR) - Parallel	6.11Ohm Max
DC Resistance (DCR) - Series	24.42Ohm Max
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)
Height	0.142" (3.60mm)
Base Part Number	SRF0703
