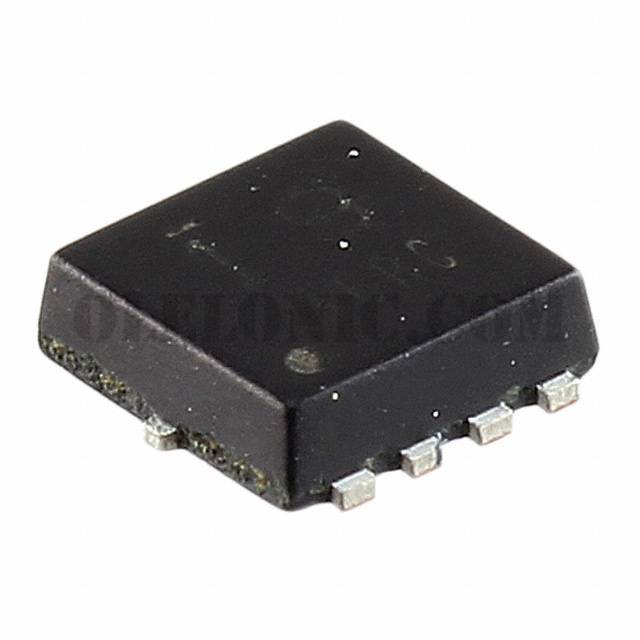

SK8403160L

SK8403160L

Part NumberSK8403160L

ManufacturerPanasonic Electronic Components

DescriptionMOSFET N-CH 30V 18A 8HSSO

DatasheetSK8403160L Datasheet

Package / Case8-PowerSMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 18A (Ta), 70A (Tc) 2W (Ta), 28W (Tc) Surface Mount HSSO8-F1-B

To learn about the specification of SK8403160L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SK8403160L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SK8403160L.
We are offering SK8403160L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SK8403160L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SK8403160L Datasheet
Standard Package	3000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	18A (Ta), 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.3mOhm @ 14.5A, 10V
Vgs(th) (Max) @ Id	3V @ 3.35mA
Gate Charge (Qg) (Max) @ Vgs	22nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3920pF @ 10V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 28W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	HSSO8-F1-B
Package / Case	8-PowerSMD, Flat Leads
