SISA10DN-T1-GE3

SISA10DN-T1-GE3

Part NumberSISA10DN-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 30V 30A 1212-8

DatasheetSISA10DN

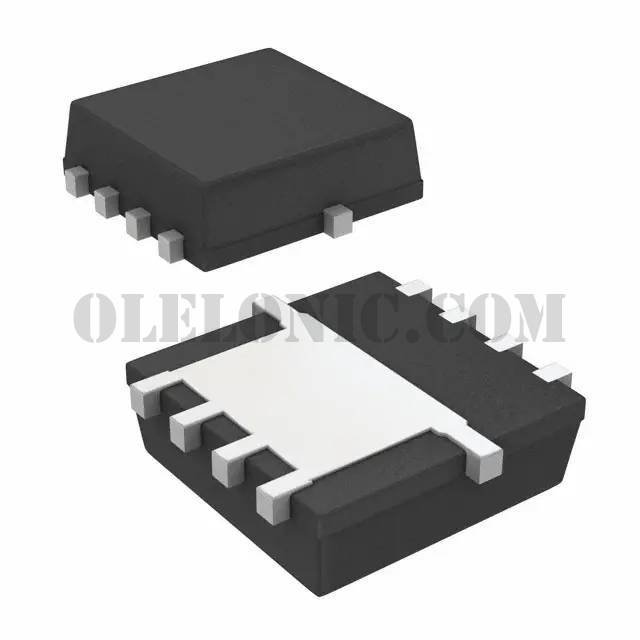

Package / CasePowerPAK® 1212-8

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 30A (Tc) 3.6W (Ta), 39W (Tc) Surface Mount PowerPAK® 1212-8

To learn about the specification of SISA10DN-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SISA10DN-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SISA10DN-T1-GE3.
We are offering SISA10DN-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SISA10DN-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SISA10DN
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.7mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	51nC @ 10V
Vgs (Max)	+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds	2425pF @ 15V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 39W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 1212-8
Package / Case	PowerPAK® 1212-8
