SIHP180N60E-GE3

SIHP180N60E-GE3

Part NumberSIHP180N60E-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH TO-220AB

DatasheetSIHP180N60E

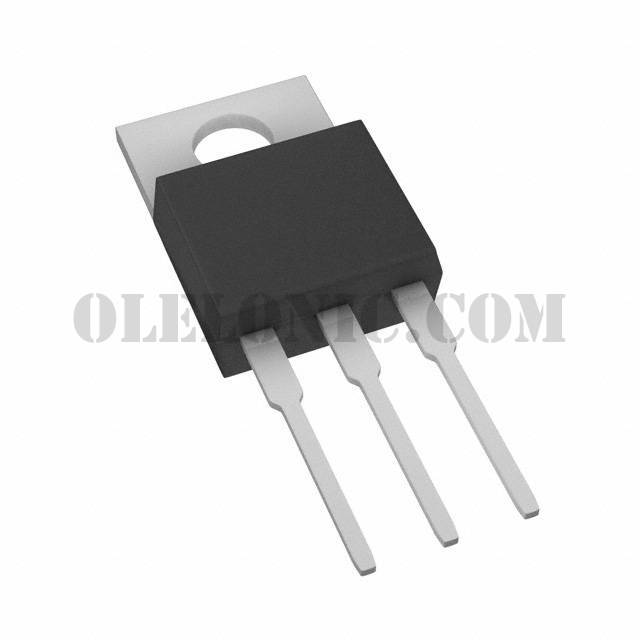

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 19A (Tc) 156W (Tc) Through Hole TO-220AB

To learn about the specification of SIHP180N60E-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIHP180N60E-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIHP180N60E-GE3.
We are offering SIHP180N60E-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIHP180N60E-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIHP180N60E
Standard Package	1000
Manufacturer	Vishay Siliconix
Series	E
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	180mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	33nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1085pF @ 100V
FET Feature	-
Power Dissipation (Max)	156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
