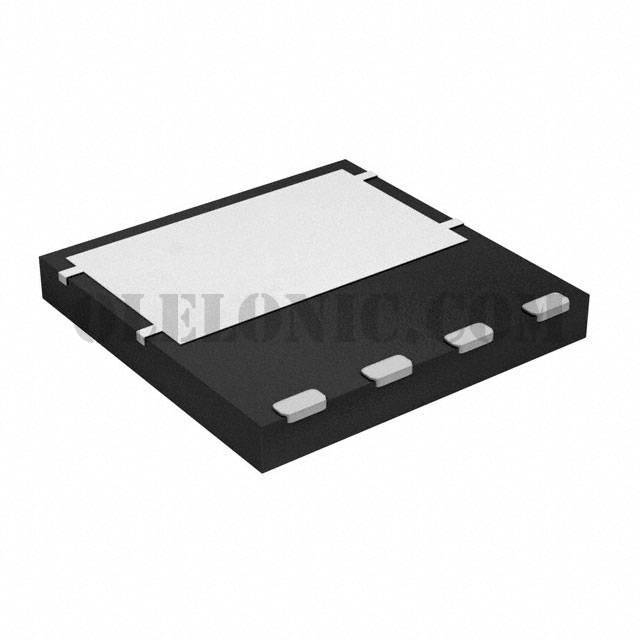

SIHH14N65EF-T1-GE3

SIHH14N65EF-T1-GE3

Part NumberSIHH14N65EF-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CHAN 650V 15A POWERPAK

DatasheetSIHH14N65EF

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 15A (Tc) 156W (Tc) Surface Mount PowerPAK® 8 x 8

To learn about the specification of SIHH14N65EF-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIHH14N65EF-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIHH14N65EF-T1-GE3.
We are offering SIHH14N65EF-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIHH14N65EF-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIHH14N65EF
Standard Package	1
Manufacturer	Vishay Siliconix
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	271mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	98nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1749pF @ 100V
FET Feature	-
Power Dissipation (Max)	156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 8 x 8
Package / Case	8-PowerTDFN
